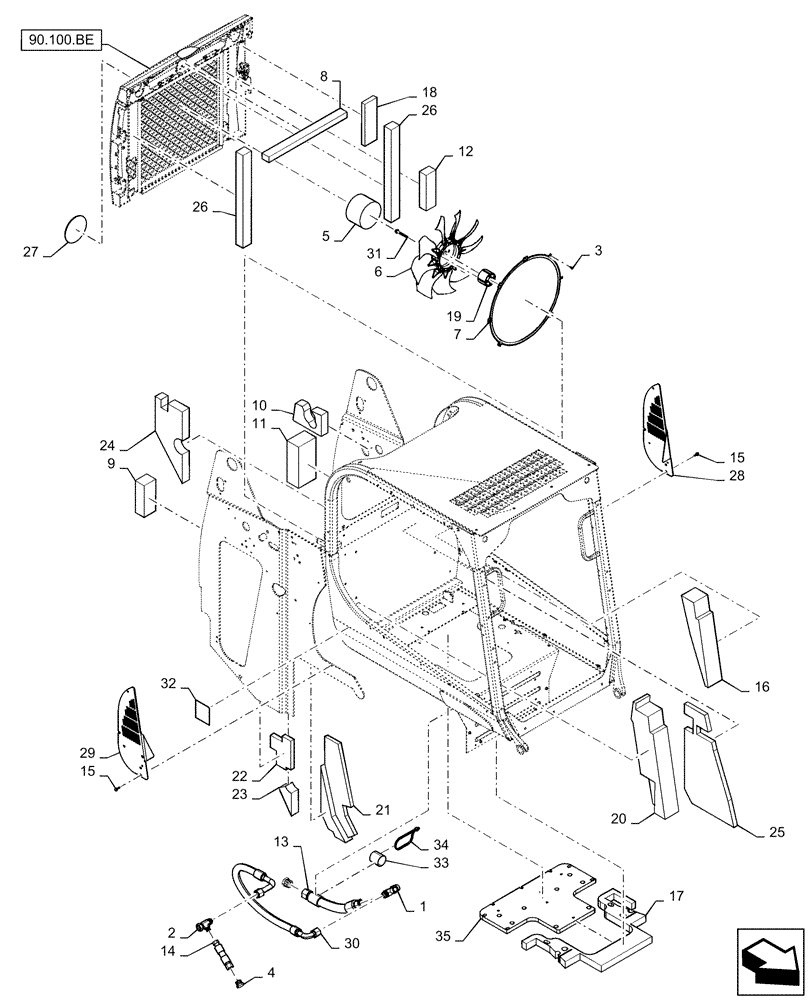

Запчасти Case SR210 (90.105.CU[01]) - INSULATION, SOUNDPROOFING, CAB EURO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

2

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

3

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

8шт.

4

9790527

PLUG,1-5/16" - 12 JIC

2шт.

5

47391841

FOAM INSULATION

Rear Door

1шт.

6

47430287

FAN,9 Blades, 518mm OD

Clockwise, Pusher

1шт.

7

47612505

BRUSH

Circular

1шт.

8

47612514

FOAM INSULATION,35mm x 50mm x 570mm

Rear Door, Top

1шт.

9

47612517

FOAM INSULATION,65mm x 85mm x 200mm

Fuel Tank

1шт.

10

47612519

FOAM INSULATION

LH Hyd Fill

1шт.

11

47612521

FOAM INSULATION,260mm L x 127mm W x 85mm Thk

LH Tower

1шт.

12

47612522

FOAM INSULATION,50mm x 70mm x 225mm

LH Rad Bracket

1шт.

13

47612532

HYDRAULIC HOSE,25mm ID x 393mm L, SAE -16

Resonator

1шт.

14

47615371

HYDRAULIC HOSE,25mm ID x 225mm L, SAE -16

Resonator

1шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

16

84366338

FOAM INSULATION

Left Tower, Front

1шт.

17

84366352

FOAM INSULATION

Heal Plate, Vertical

1шт.

18

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Tower, LH, Front

1шт.

19

84373345

SPACER

1шт.

20

84374169

FOAM INSULATION

Tower, RH, Front

1шт.

21

84374171

FOAM INSULATION

Tower, RH

1шт.

22

47638695

FOAM INSULATION

Tower, RH, Rear

1шт.

23

84374179

FOAM INSULATION

Tower, RH, Lower

1шт.

24

84374180

FOAM INSULATION

Tower, LH

1шт.

25

47638265

FOAM INSULATION

Tower, LH, Front

1шт.

26

47688540

FOAM INSULATION

Rear Door, LH

1шт.

27

47638946

COVER

Lexan Tan

1шт.

28

84383823

COVER

Chassis Vent, LH, Gray

1шт.

29

84383826

COVER

Chassis Vent, RH, Gray

1шт.

30

84544550

HOSE ASSY.,19.05mm ID x 905mm L, SAE 100R17

Valve Supply

1шт.

31

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

32

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.

33

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

35

84372040

FOAM

Seat Pan

1шт.
