Запчасти Case SR210 (05.100.01) - INITIAL STOCKING LIST, LIST A - PARTS REQUIRED FOR PLANNED MAINTENANCE (05) - SERVICE & MAINTENANCE

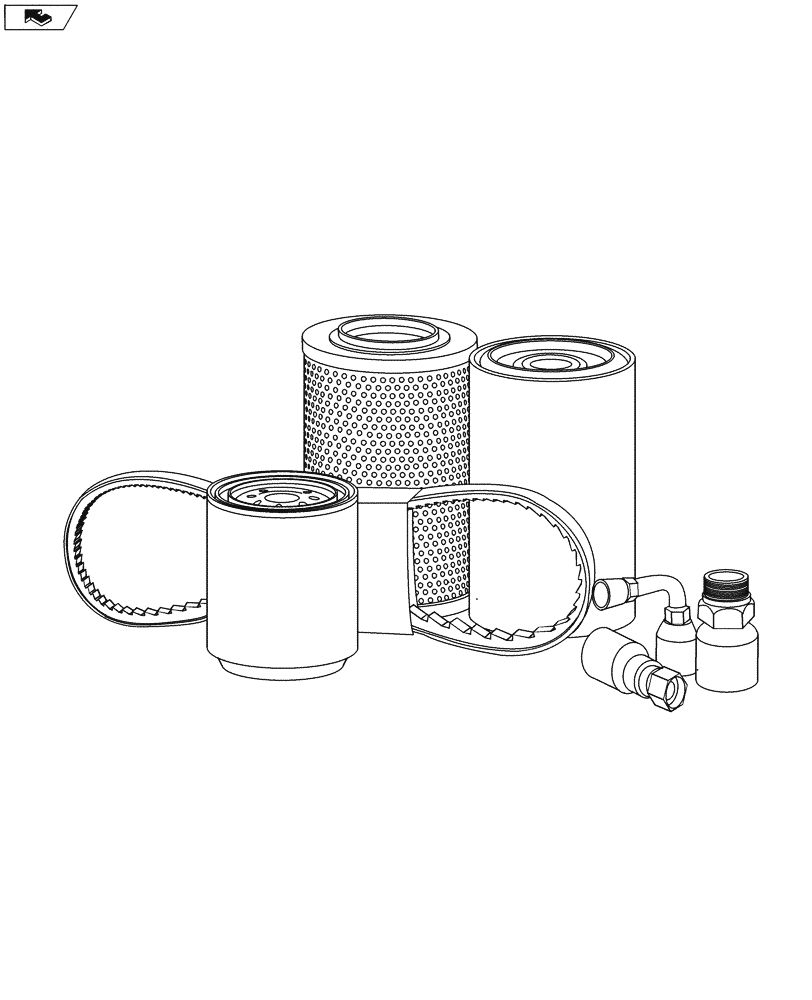

Схема запчастей Case SR210 - (05.100.01) - INITIAL STOCKING LIST, LIST A - PARTS REQUIRED FOR PLANNED MAINTENANCE (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

FPT

1шт.

2

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

FPT, Main

1шт.

3

84527831

FUEL FILTER

Door, Years: -31-JUL-13

1шт.

3

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Door, Start Year: 01-AUG-13

1шт.

4

47456328

ELEMENT

Hyd Oil

1шт.

5

504075145

ELEMENT

CCV Element

1шт.

6

222421A1

AIR FILTER

Primary

1шт.

7

222422A1

AIR FILTER

Secondary

1шт.

8

84376814

CAB FILTER,430mm L x 110mm W x 30mm Thk

Standard

1шт.

9

84376815

CAB FILTER,430mm L x 110mm W x 30mm Thk, Charcoal

Charcoal

1шт.

10

84331239

V-BELT,28.48mm W x 1500mm L, 8 Ribs

EURO

1шт.

11

87621132

V-BELT,1475mm Effective Length

1шт.

12

84317961

BELT,14.24mm W x 957mm L, 4 Ribs

A/C - Drive

1шт.

Выбрано товаров: 13
