(35.300.AD[01]) - HYDRAULIC SUPPLY PLUMBING (13-NOV-2014 & PRIOR)

Запчасти Case SR200 (35.300.AD[01]) - HYDRAULIC SUPPLY PLUMBING (13-NOV-2014 & PRIOR) (35) - HYDRAULIC SYSTEMS

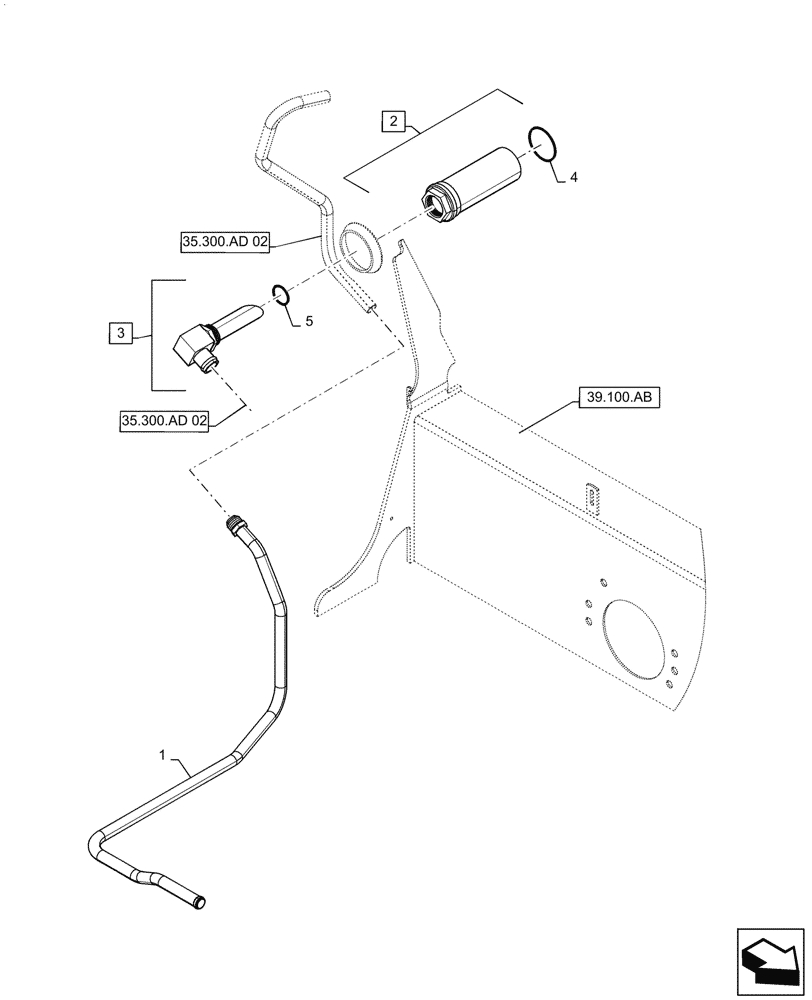

Схема запчастей Case SR200 - (35.300.AD[01]) - HYDRAULIC SUPPLY PLUMBING (13-NOV-2014 & PRIOR) (35) - HYDRAULIC SYSTEMS
35.300.ad 02
5
3
2
1
4
39.100.ab
35.300.ad 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84344911

RIGID TUBE

Tandem Supply

1шт.

2

84344918

FILTER STRAINER

225mm OAL, Incl 4

1шт.

3

84344944

90 ELBOW,-24, 1-7/8"- 12 ORB, - 24 Bead

Incl 5

1шт.

4

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

5

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

Выбрано товаров: 0
