Запчасти Case SR200 (90.108.AB[01]) - MODEL DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

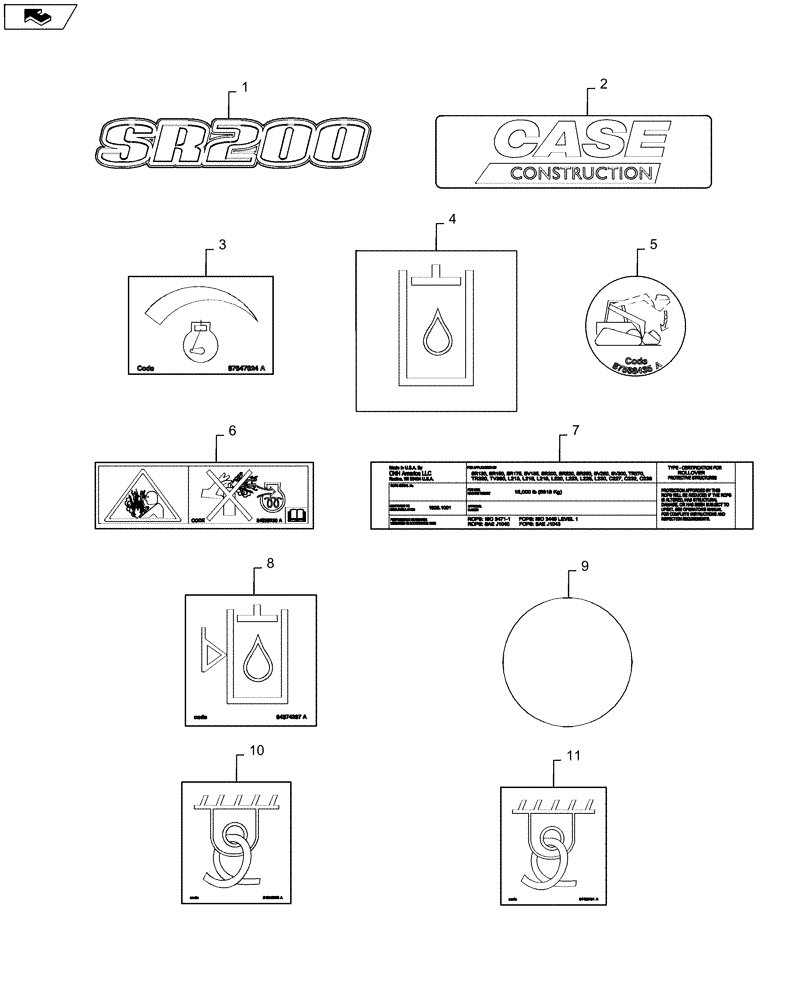

Схема запчастей Case SR200 - (90.108.AB[01]) - MODEL DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
11
10
7
8
home
5
9
4
3
6
1

Артикул

Название

Примечание

Количество

1

84493202

DECAL

SR200, Years: -03-OCT-16

2шт.

1

47919028

DECAL

SR200, Start Year: 04-OCT-16

2шт.

2

84385194

DECAL

Logo Front, Case

1шт.

3

87647024

DECAL

Throttle

1шт.

4

251753A1

DECAL

Hydraulic Fluid

1шт.

5

87568435

DECAL

Boom Override

1шт.

6

84535230

WARNING DECAL

Danger No Ether

1шт.

7

NSS

NOT SOLD SEPARAT

ROPS Model & Approval

1шт.

8

84374297

DECAL

Hydraulic Oil Level

1шт.

9

84357636

DECAL,53mm OD, Gray

Plug

1шт.

10

84315529

DECAL,64mm L x 71mm W

Tie Down

4шт.

11

84469201

DECAL,63.97mm L x 71.26mm W

Tie Down

2шт.

Выбрано товаров: 12
