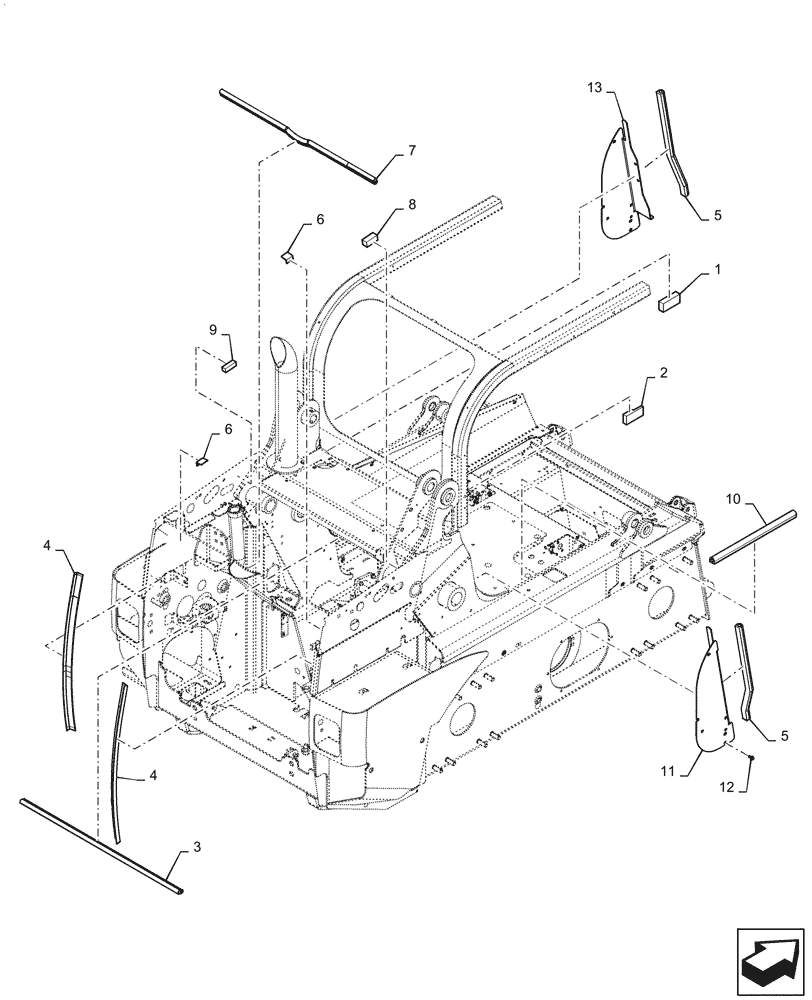

Запчасти Case SR200 (90.105.CU) - COVERS & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84600487

FOAM INSULATION

Hood, LH

1шт.

2

84600485

FOAM INSULATION

Hood, RH

1шт.

3

47729730

SEAL

Bulb

1шт.

4

47729715

SEAL

L Flap

2шт.

5

47729722

RUBBER SEAL,545mm L

Adhesive

2шт.

6

47729707

SEAL

L Flap

2шт.

7

47764946

SEALING STRIP,877mm L

Bulb

1шт.

8

47729705

FOAM

Seal Block

1шт.

9

47765520

FOAM INSULATION

Seal Block

1шт.

10

47729721

RUBBER SEAL,465mm L

Adhesive

2шт.

11

47830927

COVER

Chassis Solid, RH

1шт.

12

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

13

47816461

COVER

Chassis Solid, LH

1шт.
