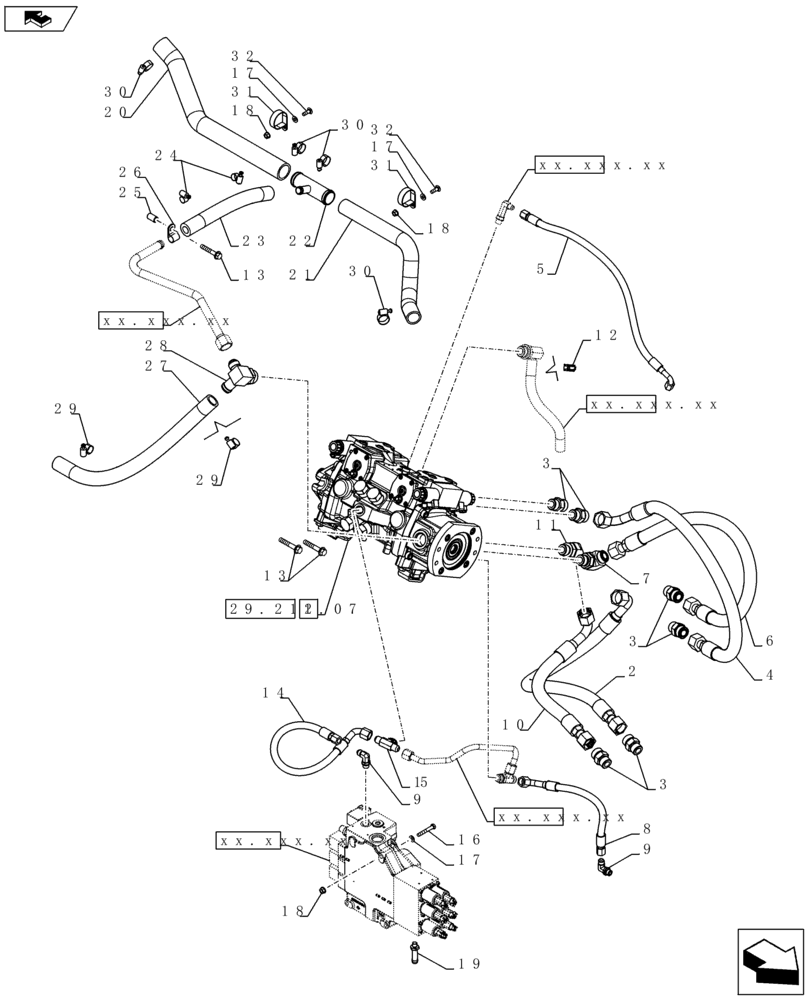

Запчасти Case SR200 (29.204.AB[03]) - PUMP, EH AND CONTROL VALVE (SR200) (29) - HYDROSTATIC DRIVE

1

84565753

HYDRAULIC PUMP,45 CC

EH, 45cc, 360BAR, Years: -30-JUN-13

1шт.

1

84565753R

REMAN-HYD PUMP

SR200 (4/11-)

1шт.

1

84565753C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

47374657

HYDROSTATIC PUMP,45 CC

Tandem, 45CC, A22VG ET S40, E-H Controls, Start Year: 01-JUL-13

1шт.

1

47374657R

REMAN-HYDROSTAT PUMP

Tandem, 45CC, A22VG ET S40, E-H Controls, Start Year: 01-JUL-13

1шт.

1

47374657C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

84258849

FLEXIBLE HOSE,19.05mm ID x 821mm L, SAE 100R19

Assembly, Loop

1шт.

3

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

6шт.

4

84258848

FLEXIBLE HOSE,19.05mm ID x 896mm L, SAE 100R19

Assembly, Loop, Includes O-Ring

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

2шт.

5

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

Assembly, EH Brake Nor

1шт.

6

84258856

FLEXIBLE HOSE,19.05mm ID x 867mm L, SAE 100R19

Assembly, Loop

1шт.

7

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

8

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

Assembly, EH Brake Charge

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

10

84312284

FLEXIBLE HOSE,19.05mm ID x 481mm L, SAE 100R19

Assembly, Loop

1шт.

11

9846870

ELBOW,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

12

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Spring

2шт.

13

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

3шт.

14

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

Assembly, EH LV Interlock

1шт.

15

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

16

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8, 8.80 X 17.5 X 2.2 HTS

5шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

19

87314487

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

Bead, Hose, 1/2in

2шт.

20

84349293

HOSE,38mm ID x 622mm OAL

Gear Pump, Suction

1шт.

21

84387463

HOSE

Gear Pump, Suction

1шт.

22

84344919

TEE

-24 Bead, -24 Bead, -12 Bead

1шт.

23

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

24

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

25

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

26

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

27

84303515

FLEXIBLE HOSE,25.4mm ID x 560mm L, SAE 100R4

Assembly, Charge Supply

1шт.

28

84344924

90 ELBOW,1-5/16" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

Fitting, -16MB, -16 Bead, -12MJ

1шт.

29

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

30

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

31

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

47.6MM M8 Bolt ZND

2шт.

32

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.
