Запчасти Case SR175 (35.300.AD[02]) - HYDRAULIC RETURN PLUMBING (35) - HYDRAULIC SYSTEMS

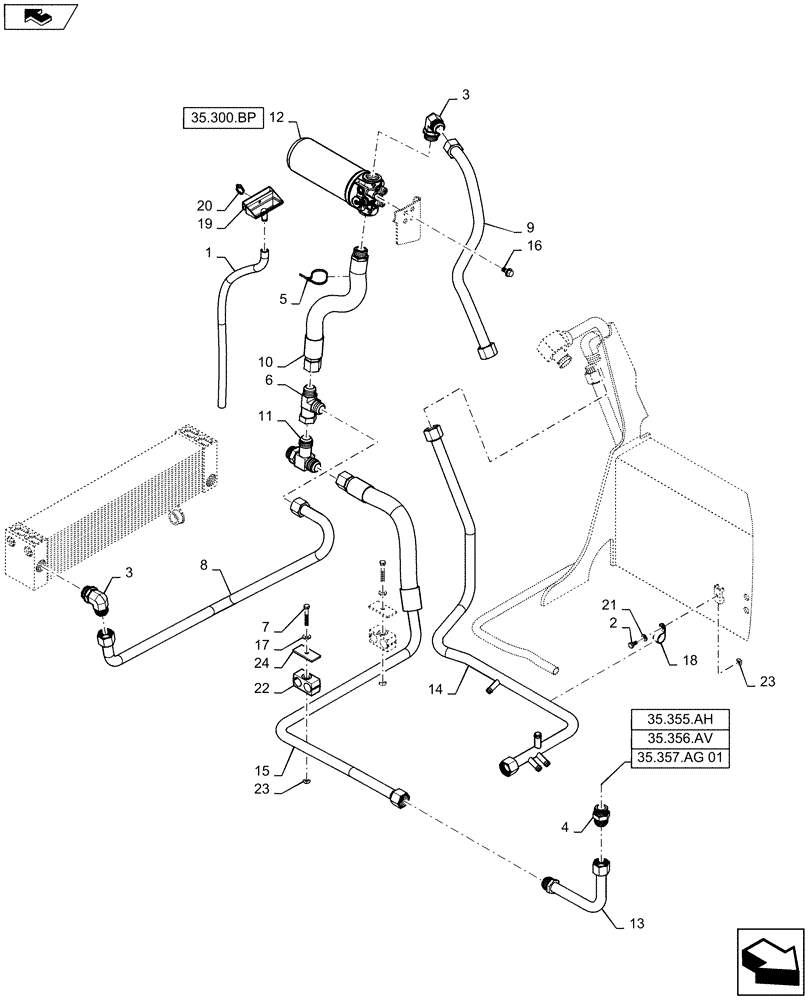

Схема запчастей Case SR175 - (35.300.AD[02]) - HYDRAULIC RETURN PLUMBING (35) - HYDRAULIC SYSTEMS
14
2
8
35.355.ah
16
19
7
13
4
18
24
35.300.bp
21
17
1
9
22
12
6
3
11
15
20
35.356.av
23
5
home
35.357.ag 01
23
3
10

Артикул

Название

Примечание

Количество

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2.0ft

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

2шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

1шт.

5

646223

STRAP,8.0" L

1шт.

6

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

8

47446414

TUBE

Oil Cooler Outlet

1шт.

9

47494390

HYD TUBE

Hydraulic Filter Return

1шт.

10

47501256

HYDRAULIC HOSE

Hydraulic Filter Return

1шт.

11

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

16 X 16 X 16mm

1шт.

12

47710533

HYDRAULIC OIL FILTER,245.1mm L x 98.8mm W

Hydraulic Oil

1шт.

13

84310722

RIGID TUBE

Loader Valve Outlet

1шт.

14

84536948

RIGID TUBE

Case Drain Manifold

1шт.

15

84546287

HYD TUBE

Loader Valve Outlet

1шт.

16

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

87455867

FUNNEL

Oil Filter

1шт.

20

87642915

CABLE TIE,198mm L

198mm

1шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17.5 X 2.2mm

1шт.

22

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

2шт.

23

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 X 1.25

3шт.

24

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

Выбрано товаров: 24
