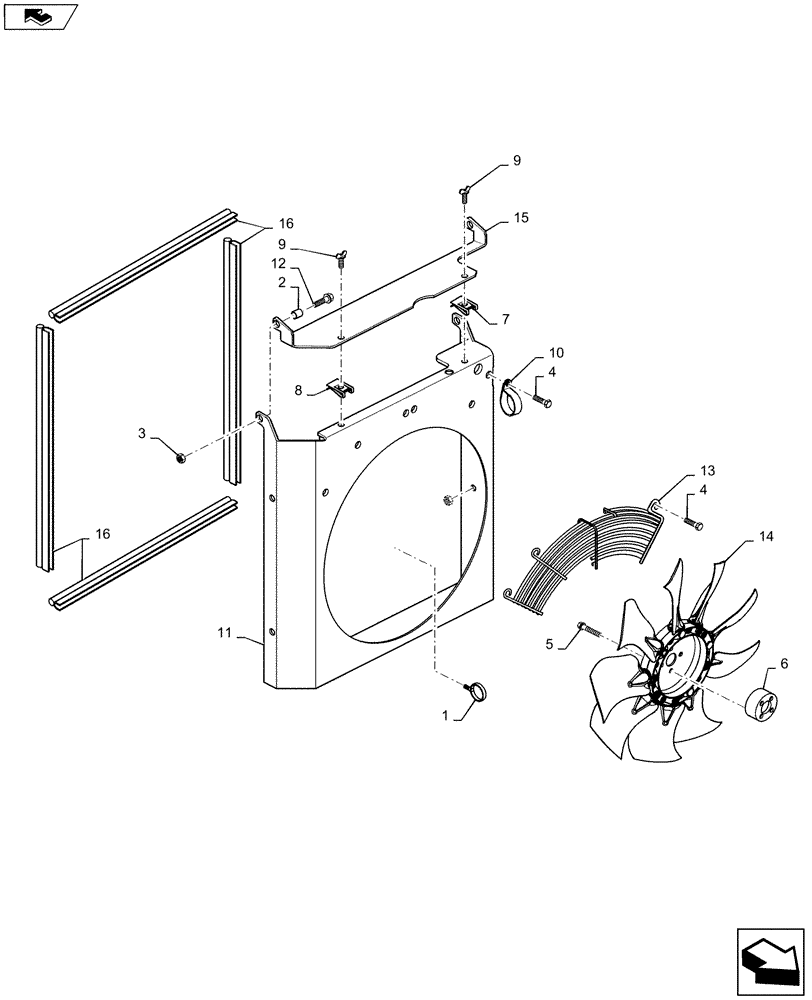

Запчасти Case SR175 (10.414.AC[01]) - FAN (10) - ENGINE

1

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

1шт.

2

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

3

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

4шт.

6

84596287

SPACER

Fan, ISM

1шт.

7

84528035

CLIP,24.7mm L

Retainer

2шт.

8

84528026

RETAINER

Fast Lead Screw

2шт.

9

84528025

FASTENER,29.3mm L

Wing Head

2шт.

10

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

47457394

SHROUD

Fan

1шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

13

47435924

GUARD

Fan

1шт.

14

47426353

FAN,9 Blades, 450mm OD

1шт.

Change Bolt and Spacer ref 5 and 6 when changing Fan.

1шт.

15

47402273

BRACKET

Shroud Access

1шт.

16

84277010

RUBBER SEAL,576.1mm L

Bulb

4шт.
