Запчасти Case SR175 (10.400.BE) - ENGINE COOLING SYSTEM LINES (10) - ENGINE

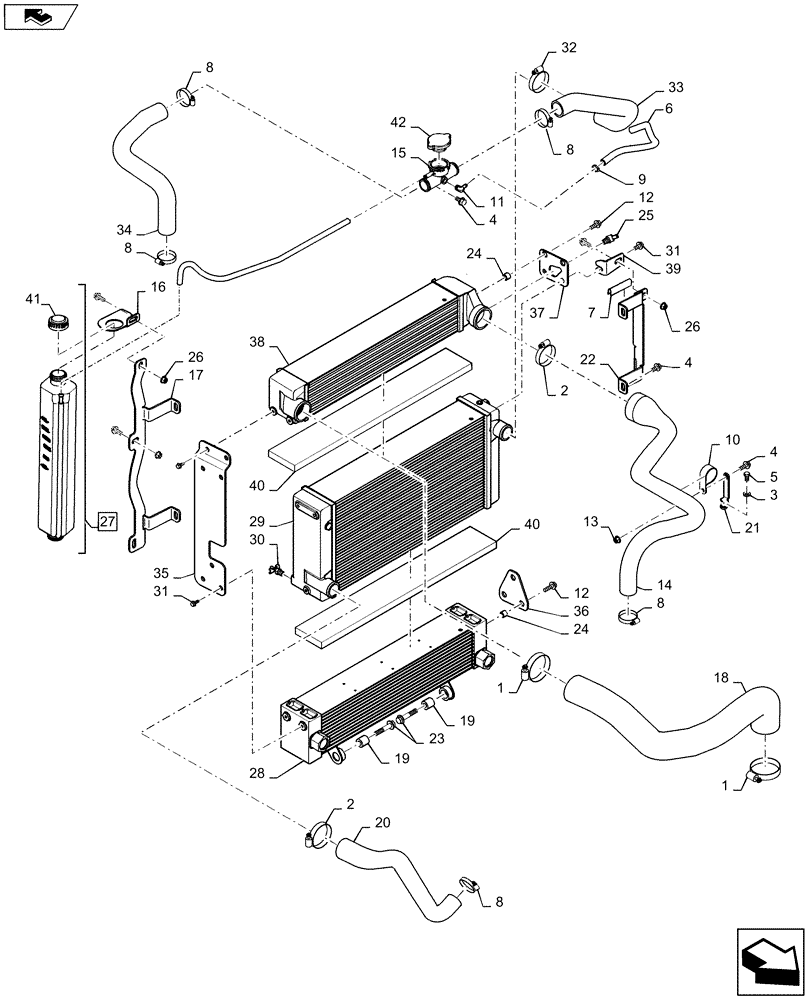

Схема запчастей Case SR175 - (10.400.BE) - ENGINE COOLING SYSTEM LINES (10) - ENGINE
19
21
13
36
5
40
7
19
39
8
10
23
42
16
8
37
8
31
26
40
26
28
20
6
3
4
15
4
33
31
12
25
29
11
17
18
12
32
2
41
14
35
22
38
4
34
30
27
24
8
8
1
2
9
1
24

Артикул

Название

Примечание

Количество

1

45014

HOSE CLAMP,2.06” - 3” , Worm Gear

2шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

3

80681

LOCK WASHER,5/16"

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

6

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

7

291186

PROTECTION STRIP,9.9mm W

1шт.

8

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

5шт.

9

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

10

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

696519

FITTING,90 Degree, 5/16" Hose x 1/4" NPTF, Barbed

, Years: -07-MAY-13

1шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

14

47376442

HOSE

Turbo to Charge Air Cooler

1шт.

15

47389848

ADAPTER

Radiator Fill Assembly, Incl 42, Years: -07-MAY-13

1шт.

15

47503039

TEE

Does not Utilize Fitting Ref 11, Cap 42 not Incl, Start Year: 08-MAY-13

1шт.

16

47399961

BRACKET

Recovery Bottle, Years: -31-DEC-14

1шт.

16

47756638

BRACKET

Recovery Bottle, Start Year: 01-JAN-15

1шт.

17

47399965

BRACKET

Fan Shroud, RH

1шт.

18

47402268

HOSE

Charge Air Cooler to Engine

1шт.

19

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.

20

47414032

FLEXIBLE HOSE

Lower Coolant

1шт.

21

47425160

BRACKET

Charge Air Cooler Hose, ISM

1шт.

22

47426022

BRACKET

Fan Shroud, LH

1шт.

23

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

24

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

5шт.

25

87026949

FITTING,45 Degree, 5/16" Hose x 1/4" NPTF, Barbed

1шт.

26

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

9шт.

27

87020980

BOTTLE,2L

Coolant Recovery, Incl 41, Years: -31-DEC-14

1шт.

27

47490003

BOTTLE

Coolant Recovery, Incl 41, Start Year: 01-JAN-15

1шт.

28

84499497

OIL COOLER

Standard Fin Density

1шт.

29

84499505

RADIATOR

Standard Fin Density

1шт.

30

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain

1шт.

31

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.

32

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

33

84531880

HOSE

Upper Coolant

1шт.

34

84536973

HOSE

Upper Coolant

1шт.

35

84542390

BRACKET

Cooler RH

1шт.

36

84542671

PLATE

Radiator Mount, LH

1шт.

37

84542673

PLATE

Air Cooler Mount, LH

1шт.

38

84542675

COOLER

Charge Air, Standard Fin Density

1шт.

NSS, Please Order 47445131

1шт.

39

84544071

BRACKET

Radiator Mount

1шт.

40

84552108

INSULATION,706.50mm L x 104.50mm W x 22mm Thk

Coolers

2шт.

41

257884A1

CAP

Coolant Recovery Bottle, Years: -31-DEC-14

1шт.

41

R50468

CAP

Coolant Recovery Bottle, Start Year: 01-JAN-15

1шт.

42

84599997

RADIATOR CAP

14 - 16 PSI, Years: -07-MAY-13

1шт.

42

87406949

FILLER CAP

16 PSI, Start Year: 08-MAY-13

1шт.

Выбрано товаров: 48
