Запчасти Case SR175 (10.250.AC) - TURBOCHARGER & RELATED PARTS (10) - ENGINE

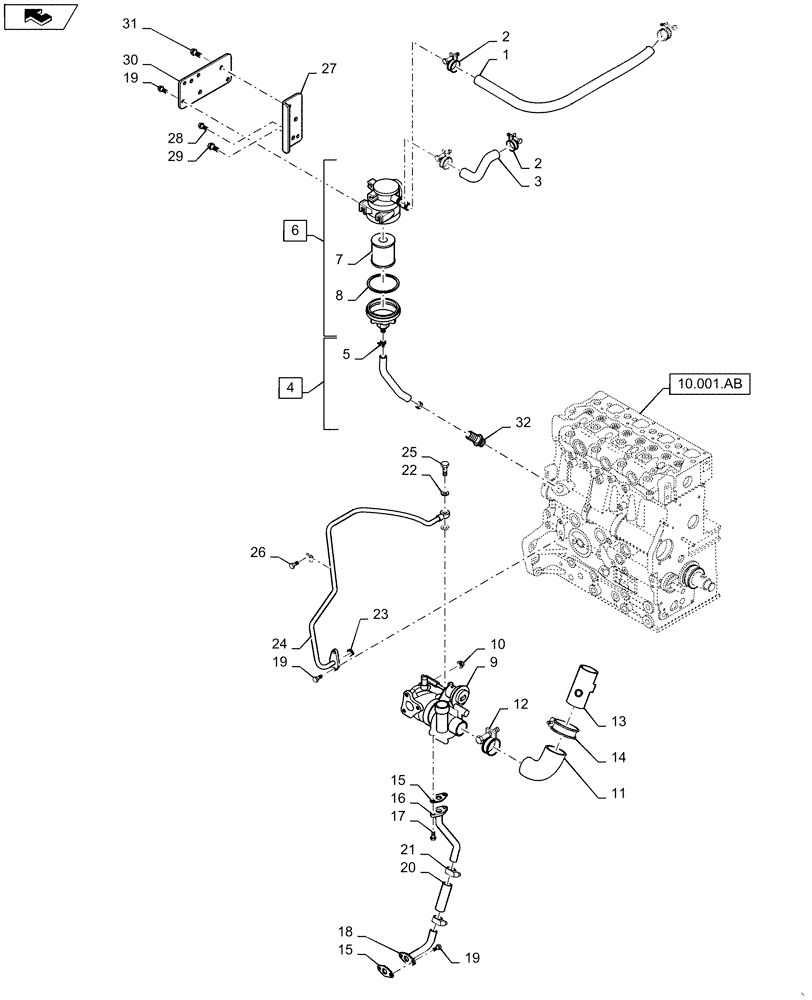

Схема запчастей Case SR175 - (10.250.AC) - TURBOCHARGER & RELATED PARTS (10) - ENGINE
18
22
5
17
26
8
10.001.ab
23
4
2
14
10
7
9
29
15
6
13
16
24
32
19
30
2
25
1
15
19
11
19
27
3
20
12
28
31
21
home

Артикул

Название

Примечание

Количество

1

SBA068209675

HOSE

Oil Mist Separetor

1шт.

2

SBA067100025

HOSE CLAMP

4шт.

3

SBA068209676

HOSE

Oil Mist Separetor

1шт.

4

SBA067200150

CLIP

2шт.

5

SBA130806220

HOSE

1шт.

6

SBA110056060

OIL SEPARATOR

Oil Mist Separetor, Incl 7 - 8

1шт.

7

SBA110536010

ELEMENT

Filter Element

1шт.

8

SBA052109136

O-RING

Oil Mist Separetor

1шт.

9

SBA135756250

TURBOCHARGER

Turbocharger Assembly

1шт.

10

SBA023100008

NUT

3шт.

11

SBA135591100

HOSE

Intake

1шт.

12

SBA067100048

HOSE CLAMP

1шт.

13

SBA135566760

PIPE

Intake

1шт.

14

SBA06710056

1шт.

15

SBA140996280

GASKET

2шт.

16

SBA140607710

TUBE

Oil

1шт.

17

SBA011140616

BOLT

2шт.

18

SBA140607700

TUBE

Oil

1шт.

19

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

7шт.

20

SBA068209646

HOSE

Oil, Engine To Turbo

1шт.

21

SBA198756200

BAND

2шт.

22

SBA054109025

SEAL

2шт.

23

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

24

SBA140607690

PIPE

Oil, Engine To Turbo

1шт.

25

SBA198487840

SCREW

1шт.

26

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

27

SBA137976111

BRACKET

Oil Mist Separetor

1шт.

28

SBA011510816

BOLT

1шт.

29

SBA011511016

BOLT

1шт.

30

SBA137966540

PLATE

Oil Mist Separetor

1шт.

31

SBA011511020

BOLT,M10 x 20

2шт.

32

SBA340674010

ADAPTER

1шт.

Выбрано товаров: 32
