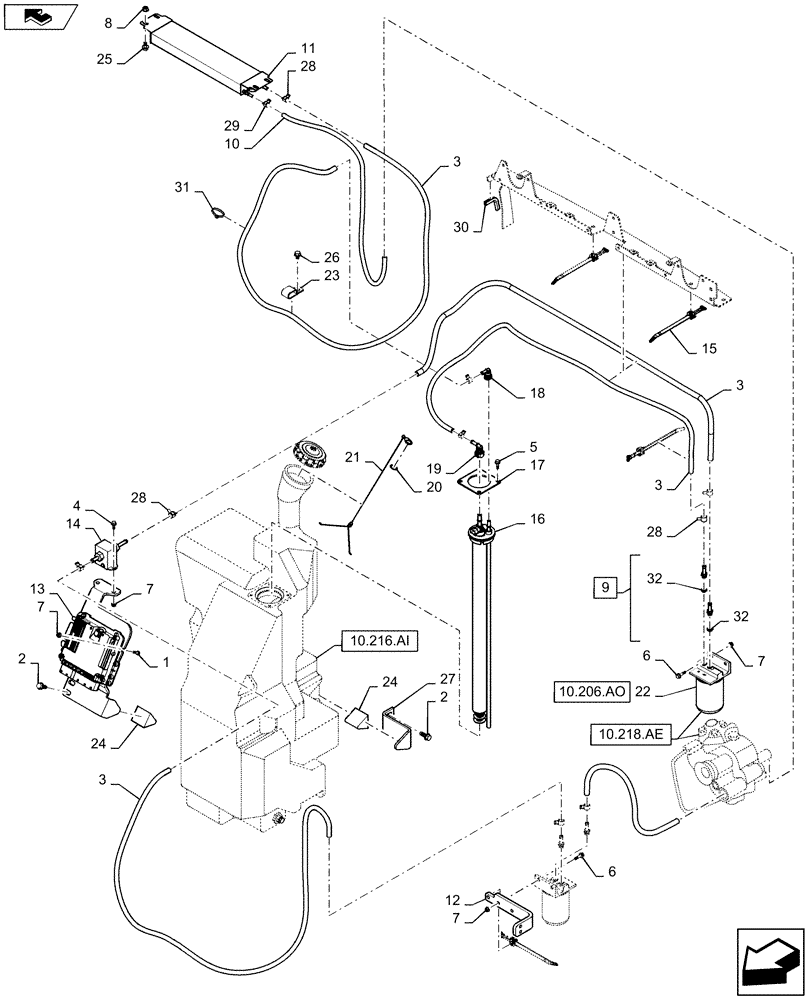

Запчасти Case SR175 (10.210.AF) - FUEL LINES (10-MAY-2012 THRU 17-JUN-2015) (10) - ENGINE

1

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

2

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

4шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Bulk, Cut To Length Required

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

5

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

6шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

12шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

5/16" Hose Barb x 7/16" - 20, Incl 32

2шт.

10

47394323

FUEL HOSE

Bulk, Cut To Length Required

1шт.

11

47402238

FUEL COOLER

1шт.

12

47439923

BRACKET

Main Fuel Filter

1шт.

13

47440271

BRACKET

Fuel Tank

1шт.

14

47465735

FUEL PUMP,12V, 1.4A

Lift, Electronic

1шт.

15

84259663

CABLE TIE,228.6mm L, Nylon, Black

6шт.

16

84268571

SENDER UNIT

Fuel Level

1шт.

17

84338049

MOUNTING PLATE

Fuel Level Sender

1шт.

18

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

Fuel, 5/16"

1шт.

19

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

Fuel, 3/8"

1шт.

20

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap, Locking

1шт.

21

84370069

CHAIN

Fuel Cap

1шт.

22

84559030

FUEL FILTER

Water-In-Fuel Separator

1шт.

23

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

Double

1шт.

24

84602030

PAD

Foam

2шт.

25

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

26

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

27

47710480

BRACKET

Fuel Tank

1шт.

28

87436932

CLAMP,13.9mm - 15.5mm, Spring

Hose, 15mm

8шт.

29

87436933

CLAMP,11.7mm - 13.9mm

Hose, 12mm

2шт.

30

87702286

TRIM,Bulk, 1/8" x 30480mm L

Seal

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

Nylon, 8" Long

4шт.

32

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
