Запчасти Case SR175 (88.035.16) - DIA KIT, 2ND FRONT HYD AUX- MED RAD (88) - ACCESSORIES

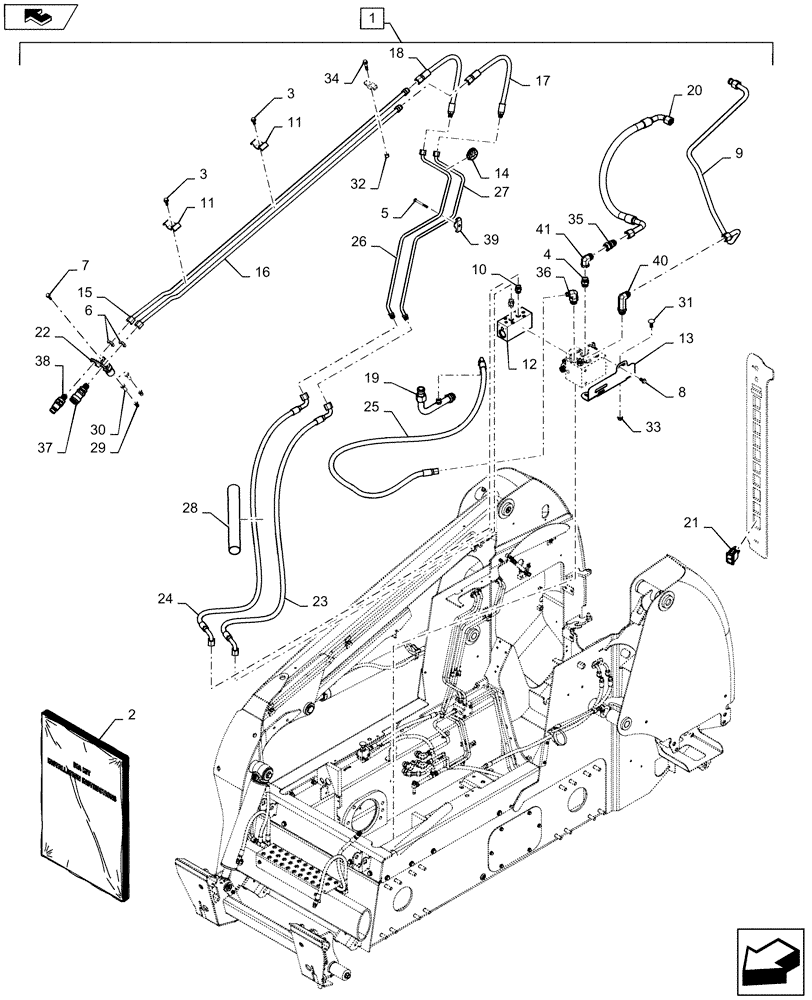

Схема запчастей Case SR175 - (88.035.16) - DIA KIT, 2ND FRONT HYD AUX- MED RAD (88) - ACCESSORIES
30
4
8
7
2
34
24
3
18
41
23
5
home
19
21
11
17
14
39
15
25
12
22
13
16
20
27
37
10
29
28
32
38
3
31
33
35
36
1
11
40
6
26
9

Артикул

Название

Примечание

Количество

1

47483682

KIT

2nd Front Hyd Aux DIA Kit, Incl 2 - 41

1шт.

2

47483691

INSTRUCTION

Sheet, 2nd Front Hyd Aux Kit

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

5

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

6

595460

BHD LOCK NUT,7/8" - 14

2шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

47482778

TUBE

Tube Assy

1шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

11

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

12

84292198

VALVE

EH Secondary Aux

1шт.

13

84322489

SUPPORT

2nd Aux Valve

1шт.

14

84322490

GROMMET

Hydraulic Tube

1шт.

15

84327653

RIGID TUBE

2nd Aux Arm - B1

1шт.

16

84327655

RIGID TUBE

2nd Aux Arm - A1

1шт.

17

84327656

HOSE ASSY.

2nd Aux Arm - A1

1шт.

18

84327657

HOSE ASSY.

2nd Aux Arm - B1

1шт.

19

84332288

RIGID TUBE

2nd Aux valve return

1шт.

20

84355404

HOSE ASSY.

2nd Aux Supply

1шт.

21

84392527

SWITCH

Rocker, Aux Electric

1шт.

22

84474235

BRACKET

Aux Coupler

1шт.

23

84474953

HOSE ASSY.

2nd Aux A

1шт.

24

84474956

HOSE ASSY.

2nd Aux B

1шт.

25

84475145

HOSE ASSY.,12.5mm ID x 1778mm L, SAE 100R17

2nd Aux Return

1шт.

26

84475164

HYD TUBE

2nd Aux A - 2

1шт.

27

84475167

HYD TUBE

2nd Aux B - 2

1шт.

28

84475182

HOSE PROTECTION

Guard

1шт.

29

84531322

RIVET,12.7mm OD x 21.5mm L

2шт.

30

84580760

RIVET,Flng, 14mm OD x 21.5mm L

2шт.

31

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

32

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

9.5mm ID x 15.9mm OD x 12.7mm ZND

1шт.

33

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

34

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

1шт.

35

87058492

HYD CONNECTOR,1-1/16" - 12 JIC x 1-1/16" - 12 Fem Sw

37 FL SWVL 12 - 12 M-F

1шт.

36

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

37

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

Quick Coupling Female

1шт.

38

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

Quick Coupling Male

1шт.

39

D120679

CLAMP,Tube, 1/2"

1/2

2шт.

40

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.

41

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

2шт.

Выбрано товаров: 41
