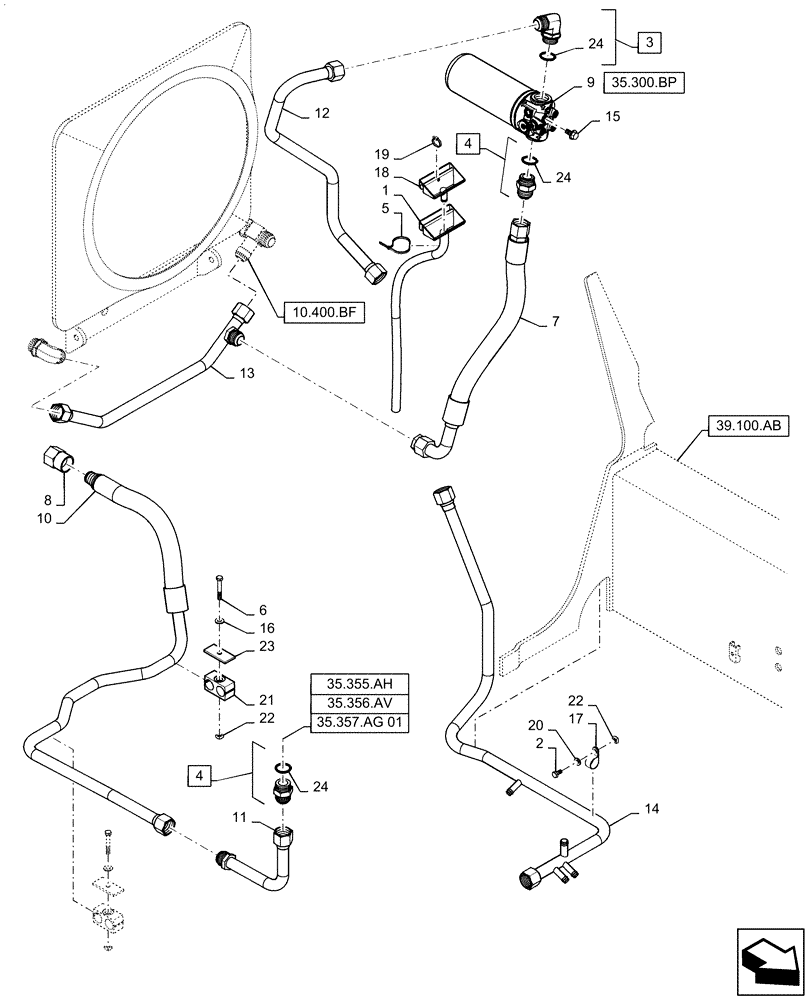

Запчасти Case SR175 (35.300.AD[02]) - HYDRAULIC RETURN PLUMBING (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2'

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 24

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 24

2шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47462048

HYDRAULIC HOSE,25.4mm ID x 665mm L, SAE 100R4

Oil Cooler Outlet

1шт.

8

84259489

ADAPTER,1-5/16" - 12 JIC x -16 Female Quick Lok

-16FJ -16FQLH

1шт.

9

47456328

ELEMENT

Filter

1шт.

10

84310715

RIGID TUBE

Loader Valve Outlet

1шт.

11

84310722

RIGID TUBE

Loader Valve Outlet

1шт.

12

84344916

HYD TUBE

Hyd Filter Return

1шт.

13

84375905

RIGID TUBE

Oil Cooler Outlet

1шт.

14

84536948

RIGID TUBE

Case Drain Manifold

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

87455867

FUNNEL

Oil Filter

1шт.

19

87642915

CABLE TIE,198mm L

198mm OAL

1шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

67mm OAL

2шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

23

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar, 68mm OAL

2шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.
