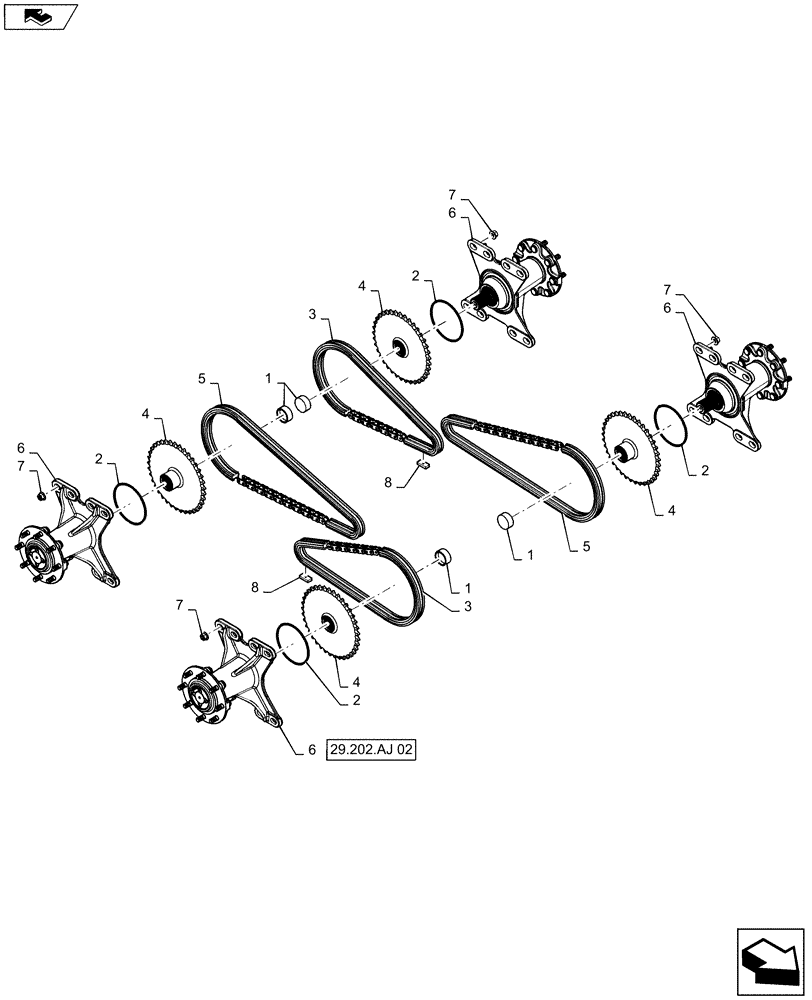

Запчасти Case SR175 (29.202.AJ[01]) - DRIVE TRAIN (29) - HYDROSTATIC DRIVE

1

47364957

BUMPER

Standard Axle

4шт.

2

70923606

O-RING,-439, 70 Duro, 6.475" ID x .275" Thk

100/50P

4шт.

3

84200819

CHAIN,#80, 62 Links x 25.4mm = 1574.8mm

80/62P

2шт.

4

84254098

DRIVEN SPROCKET

37 Tooth

4шт.

5

84254100

CHAIN,#80, 76 Links x 25.4mm = 1930.4mm

80/76P

2шт.

6

84596301

4WD AXLE ASSY

Planetary, Standard, Tan, Years: -02-OCT-16

4шт.

6

48024993

AXLE

Planetary, Standrd, Gray, Start Year: 03-OCT-16

4шт.

7

86512498

FLANGE NUT,M16 x 2, Cl 10

Nylon

32шт.

8

328955A1

MAGNET,22.23mm W x 47.63mm L x 9.91mm Thk

48mm x 22mm x 10mm, Mounted Under Drive Motor

2шт.
