Запчасти Case SR175 (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE

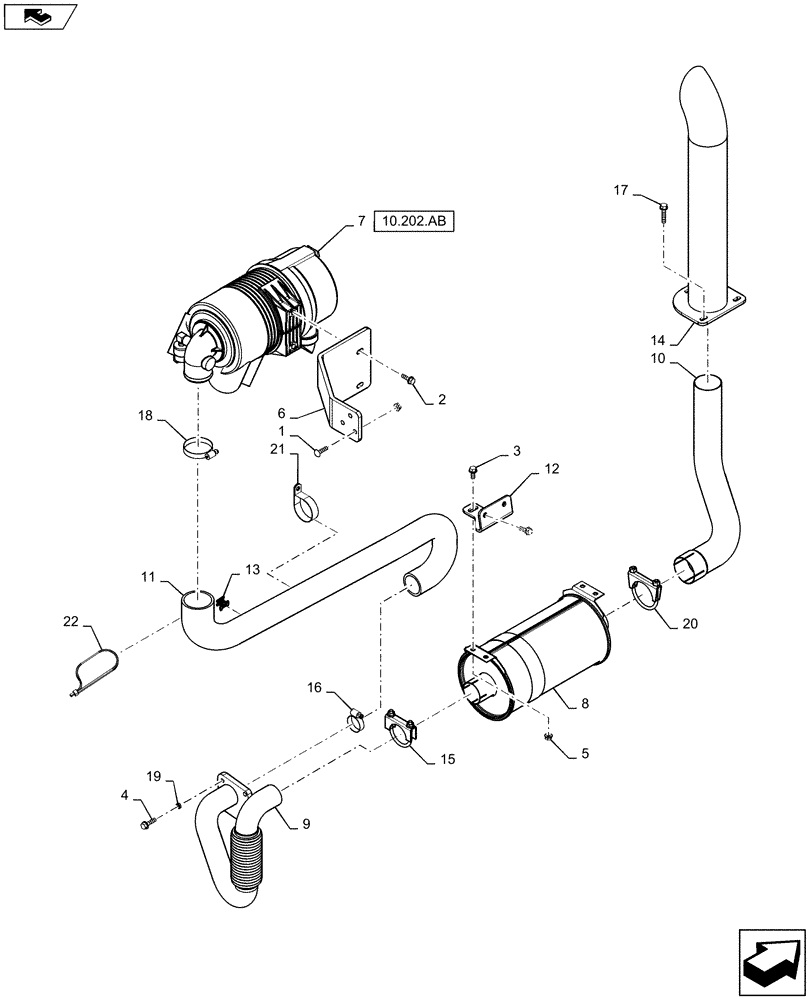

Схема запчастей Case SR175 - (10.254.AI) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE
3
8
15
1
16
22
4
13
12
21
18
6
19
17
5
20
7
10
2
11
10.202.ab
home
9
14

Артикул

Название

Примечание

Количество

1

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

6

47389924

BRACKET

Air Cleaner

1шт.

7

84263147

AIR CLEANER,7"

Air Cleaner Assy. 7in

1шт.

8

84287171

MUFFLER,Aspirated

Bilen ISM

1шт.

9

84287177

TUBE

Exhaust Flexible

1шт.

10

84304443

EXHAUST SYSTEM PIPE

Exhaust Tailpipe

1шт.

11

84307950

A/C HOSE

Air Cleaner To Turbo

1шт.

12

84308151

MOUNTING PLATE

Muffler

2шт.

13

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

14

84495949

EXTENSION

Exhaust Stack

1шт.

15

84588569

CLAMP,54mm ID, Muffler

Muffler, 2in

1шт.

16

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

17

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.

18

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

19

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

20

87461995

CLAMP,68mm ID, Muffler

Muffler, 68mm ID

1шт.

21

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

Closed, 57.1mm ID

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

2шт.

Выбрано товаров: 22
