Запчасти Case SR175 (10.220.aa[03]) - E-H, THROTTLE CONTROL, HAND & FOOT (10) - ENGINE

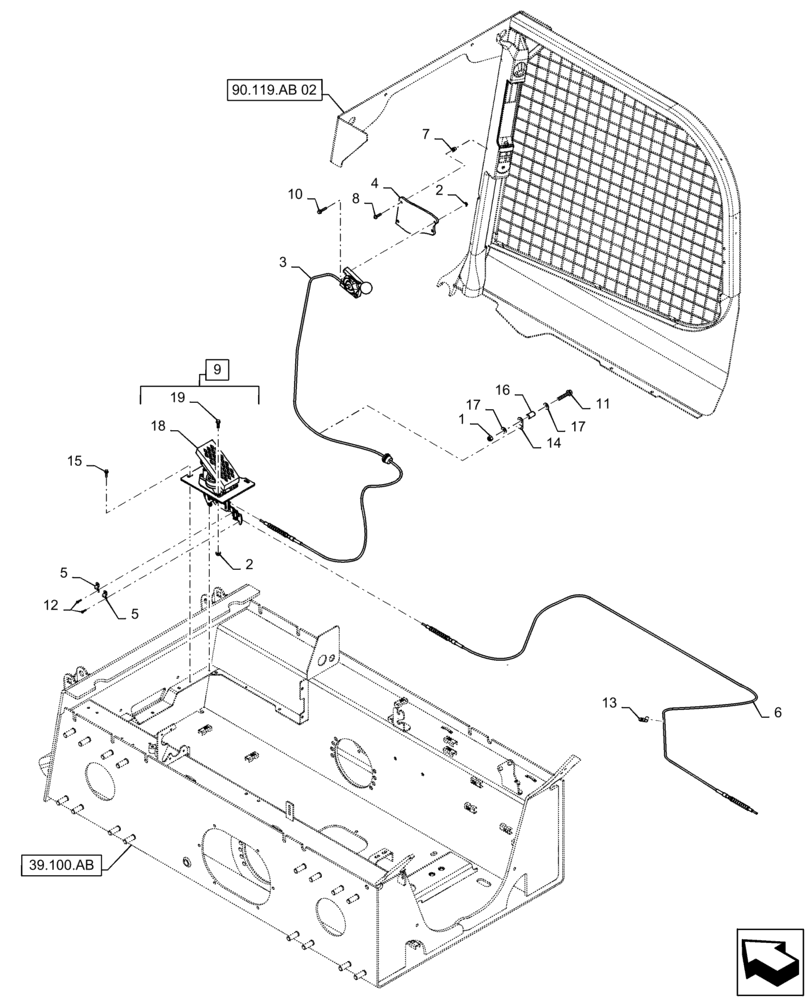

Схема запчастей Case SR175 - (10.220.aa[03]) - E-H, THROTTLE CONTROL, HAND & FOOT (10) - ENGINE
2
18
11
7
2
13
6
10
8
90.119.ab 02
17
9
5
39.100.ab
5
17
15
1
3
19
14
16
4
12

Артикул

Название

Примечание

Количество

1

9637692

NUT,3/8"-16, Gr B

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

3

84258153

HANDLE GRIP

Throttle, Incl Cable, Years: -21-MAR-13

1шт.

3

47409019

HANDLE

Throttle, Incl Cable, Start Year: 22-MAR-13

1шт.

4

84333202

MOUNT

Hand Throttle, Years: -21-MAR-13

1шт.

4

47464466

MOUNT

Hand Throttle, Start Year: 22-MAR-13

1шт.

5

84200938

CLAMP

Throttle Cable

2шт.

6

84258820

CABLE,2640mm L

Pedal To Governor

1шт.

7

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

8

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

9

84374768

THROTTLE

Foot Pedal Assy, Incl 2, 18 - 19

1шт.

10

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

11

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

12

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

4шт.

13

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

15

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

3шт.

16

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

17

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

18

84262611

PEDAL

Foot Throttle, With Sensor

1шт.

19

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

Выбрано товаров: 21
