(90.116.AX) - CHASSIS VENT PANEL

Запчасти Case SR175 (90.116.AX) - CHASSIS VENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

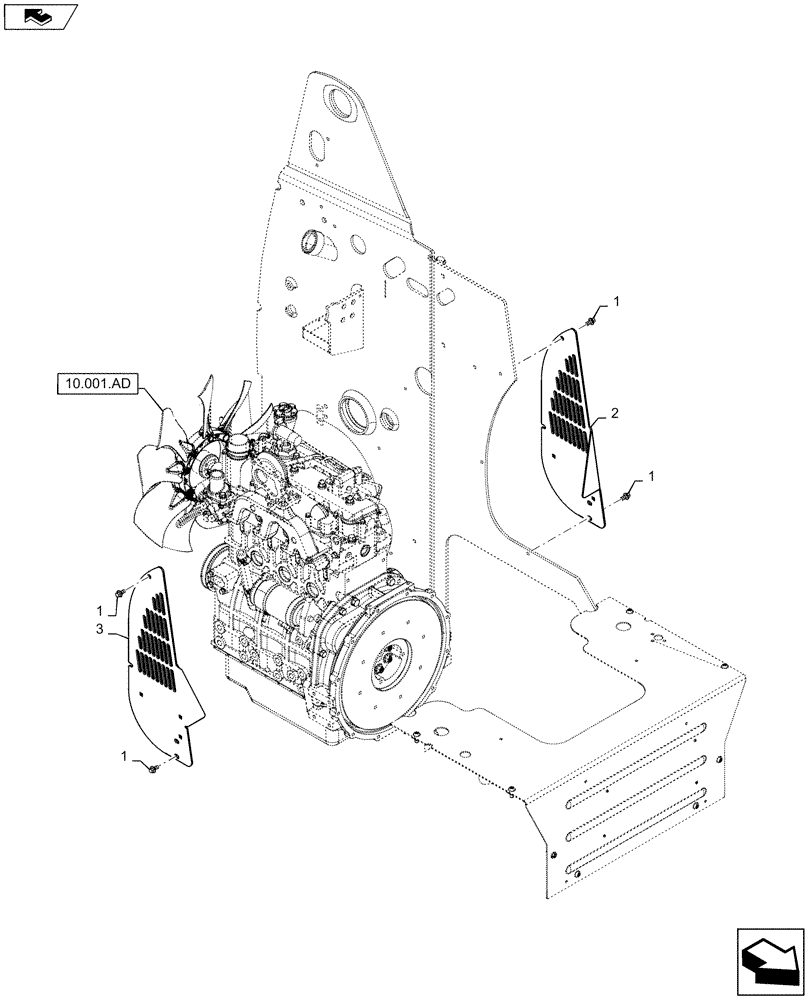

Схема запчастей Case SR175 - (90.116.AX) - CHASSIS VENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.001.ad
2
3
1
1
home
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

2

84351125

COVER PLATE

LH

1шт.

3

84354588

COVER PLATE

RH

1шт.
