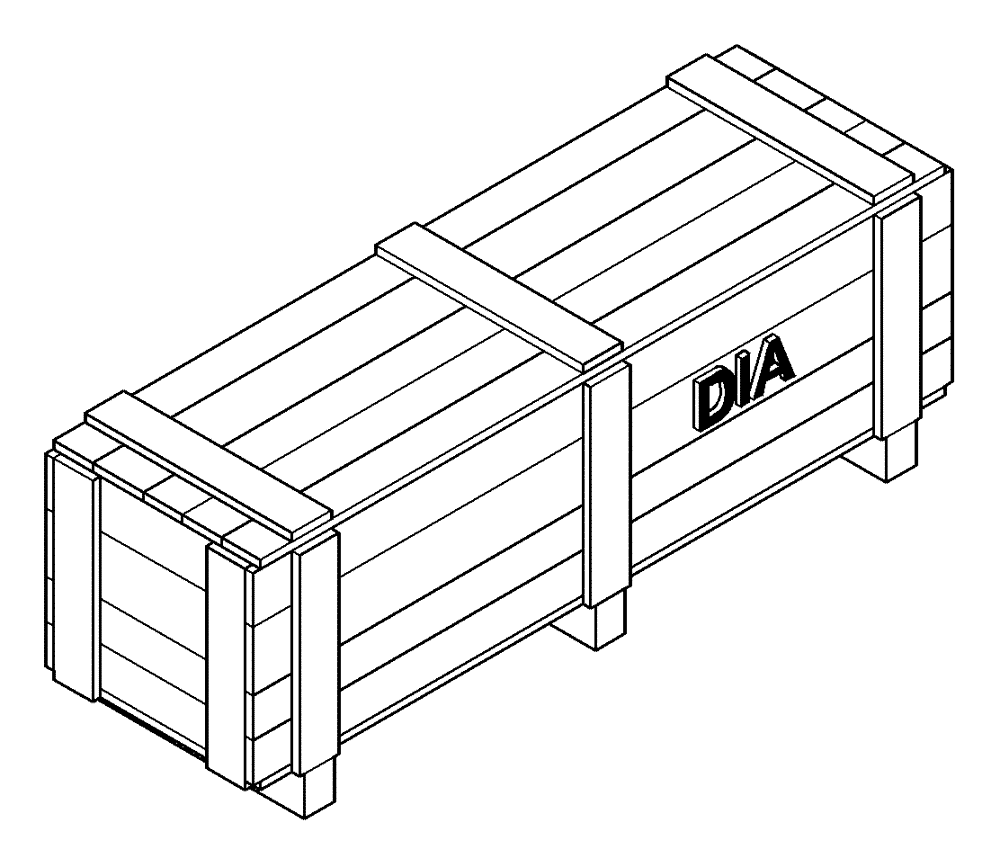

Запчасти Case SR175 (88.100.50[02]) - DIA KIT, COMPLETE HVAC (88) - ACCESSORIES

1

47524384

KIT

Complete HVAC, Incl 2 - 124

1шт.

2

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

1шт.

3

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

4

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

1шт.

5

84821

SCREW,Truss HD, #10 - 24 x 1/2"

1шт.

6

88826

LOCK NUT,#10-24, GA

1шт.

7

100012

NUT,M4 x 0.7, Cl 8

2шт.

8

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

5шт.

10

263117

CABLE TIE,292.1mm L, Nylon, Black

7шт.

11

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

1шт.

12

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.

13

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

14

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

15

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

1шт.

16

7120985

BOLT,Hex, M10 x 115mm, Cl 10.9

1шт.

17

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

18

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

20

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

21

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

22

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

25

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

26

9844532

BRACKET

L

1шт.

27

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

1шт.

28

47376521

CONDENSER

Assy

1шт.

29

47467486

ANGLE

Hood Lock Tab, Gray

1шт.

30

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

2шт.

31

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

2шт.

32

47519844

REINFORCEMENT

RH, Tilt Hood, Gray

1шт.

33

47519852

REINFORCEMENT

LH, Tilt Hood, Gray

1шт.

34

47537889

GAS STRUT,372mm Extended, 327mm Compressed

Enclosed Cab

1шт.

35

47627999

HEATER HOSE,15.5mm ID, Formed

1шт.

36

47707866

FITTING,5/8” Hose Barb Union

1шт.

37

47741863

AIRCOND. COMPRESSOR

Assy

1шт.

38

47821526

RECEIVER-DRYER

Horizontal

1шт.

39

47844688

HOOD

Tilt, Gray

1шт.

40

47882882

INSTRUCTION

HVAC Bracket Components, Sheet

1шт.

41

47918644

FASTENER,Pine Tree, 26.9mm L, Nylon

7шт.

42

47919014

DUCT

RH Air, Trim, Fiat Gray

1шт.

43

47919015

DUCT

LH Air, Trim, Fiat Gray

1шт.

44

47929817

WIRE HARNESS

HVAC Jumper

1шт.

45

47939965

A/C HOSE

Liquid

1шт.

46

47939967

A/C HOSE

Discharge

1шт.

47

47939973

A/C HOSE

Discharge

1шт.

48

47984178

HEATER

W/ A/C

1шт.

49

47997458

INSTRUCTION

HVAC Kit

1шт.

50

48031374

TRIM,Flare, 790mm L

Flare, 790mm L

2шт.

51

48033462

SEALING STRIP,684mm L

Sealing, 684mm L

1шт.

52

48037259

A/C HOSE

Discharge

1шт.

53

48043558

INSTRUCTION

ISM HVAC Hose Component, Sheet

1шт.

54

48043997

INSTRUCTION

ISM Heater Hoses, Sheet

1шт.

55

48052200

TRIM PANEL

Rear, Lapbar, Fiat Gray

1шт.

56

48063671

INSTRUCTION

Heat/HVAC Trim, Sheet

1шт.

57

82012869

CABLE TIE,300mm L, Nylon, Black

2шт.

58

84200938

CLAMP

Throttle Cable

1шт.

59

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

60

84280313

AIR DUCT

Intake

1шт.

61

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

62

84286072

SPRING

Throttle

1шт.

63

84321278

BRACKET, PIVOT

Compressor, Gray

1шт.

64

84322838

PLATE

Cover, Tan

1шт.

65

84322901

PLATE

Cover, Yellow

1шт.

66

84323065

BELT

A/C Drive

1шт.

67

84347258

DECAL

HVAC

1шт.

68

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

69

84357840

HOSE,15.5mm ID x 2740mm L

1шт.

70

84361522

BRACKET

L

1шт.

71

84362126

FOAM INSULATION

Roof

1шт.

72

84370302

FOAM INSULATION

HVAC Box

1шт.

73

84370705

BRACKET

147mm L

1шт.

74

84378693

BRACKET

Compressor Pivot, Gray

1шт.

75

84380240

BRACKET

Relay

1шт.

76

84387904

COMPRESSION SPRING,Extension, 225mm OD x 100mm L

1шт.

77

84411489

FOAM INSULATION

Center Upper Chassis

1шт.

78

84416163

FOAM INSULATION

RH Upper Chassis

2шт.

79

84416164

FOAM INSULATION

RH Upper Chassis

2шт.

80

84559122

BRACKET

Water Valve & Dryer

1шт.

81

86405134

PULLEY

A/C

1шт.

82

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

83

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

84

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

85

86512554

NUT,M10 x 1.5, Cl 10

2шт.

86

86530043

FITTING,5/8” Y-Fitting

Y Fitting

1шт.

87

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

88

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

89

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

90

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

91

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

92

86625073

SPRING NUT,M6 x 1

4шт.

93

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

94

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

95

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

96

86729669

SWITCH

Blower

1шт.

97

86729670

KNOB

Switch

2шт.

98

86729675

SWITCH,5000 Ohm

Tempurature

1шт.

99

87000227

SWITCH, A/C HIGH PRE

5000 PSI Max

1шт.

100

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

101

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

102

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

103

87036224

BOLT,Flng, M4 x 16mm, Cl 4.8

2шт.

104

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

105

87355337

RELAY,12V, 45A

1шт.

106

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

107

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

12шт.

108

87520839

VALVE

Package

1шт.

109

87555249

SWITCH

A/C

1шт.

110

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Cut to Length, 2600mm

1шт.

111

87582270

BLOCK

Idler Adjust

1шт.

112

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

1шт.

113

87606706

PULLEY,78.49mm OD

1шт.

114

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

115

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

116

87669161

VENT

Global Louver

6шт.

117

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

118

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

119

348452A1

FASTENER,Push-In, 37mm L, Nylon

10шт.

120

400472A1

SPRING,10mm Rod, 38.1mm Stroke

1шт.

121

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

122

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

123

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

124

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
