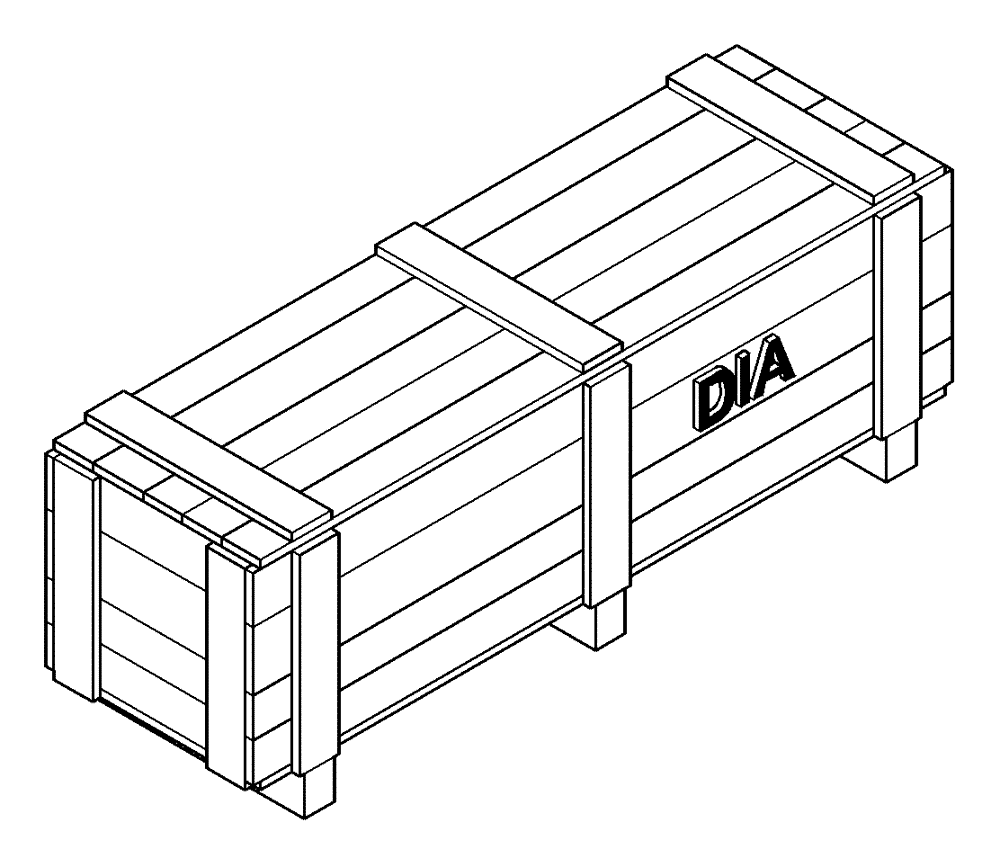

Запчасти Case SR175 (88.035.11) - DIA KIT, HIGH FLOW AUX - MED RADIAL ISM (88) - ACCESSORIES

1

47415600

KIT

High Flow Aux, Med Radial, Incl 2 - 31

1шт.

2

47416547

INSTRUCTION

1шт.

3

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

4

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

9

47447054

VALVE

1шт.

10

84186146

TUBE,12.7mm OD

1шт.

11

84251427

SWITCH

1шт.

12

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

2шт.

13

84256405

HYDRAULIC VALVE

1шт.

14

84256518

PUMP,24.9 CC

1шт.

15

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

1шт.

16

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

1шт.

17

84277076

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

4шт.

18

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

19

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

20

84306937

COVER PLATE

1шт.

21

84322573

HYD TUBE

1шт.

22

84322575

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

23

84322576

HYD TUBE

1шт.

24

84322578

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

25

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

1шт.

26

84331287

SCREW,HWH, 3/8" - 16 x 3"

3шт.

27

84373460

PLUG,23.8mm OD

1шт.

28

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

29

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

30

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

31

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

2шт.
