Запчасти Case SR175 (10.101.AB) - CYLINDER HEAD (10) - ENGINE

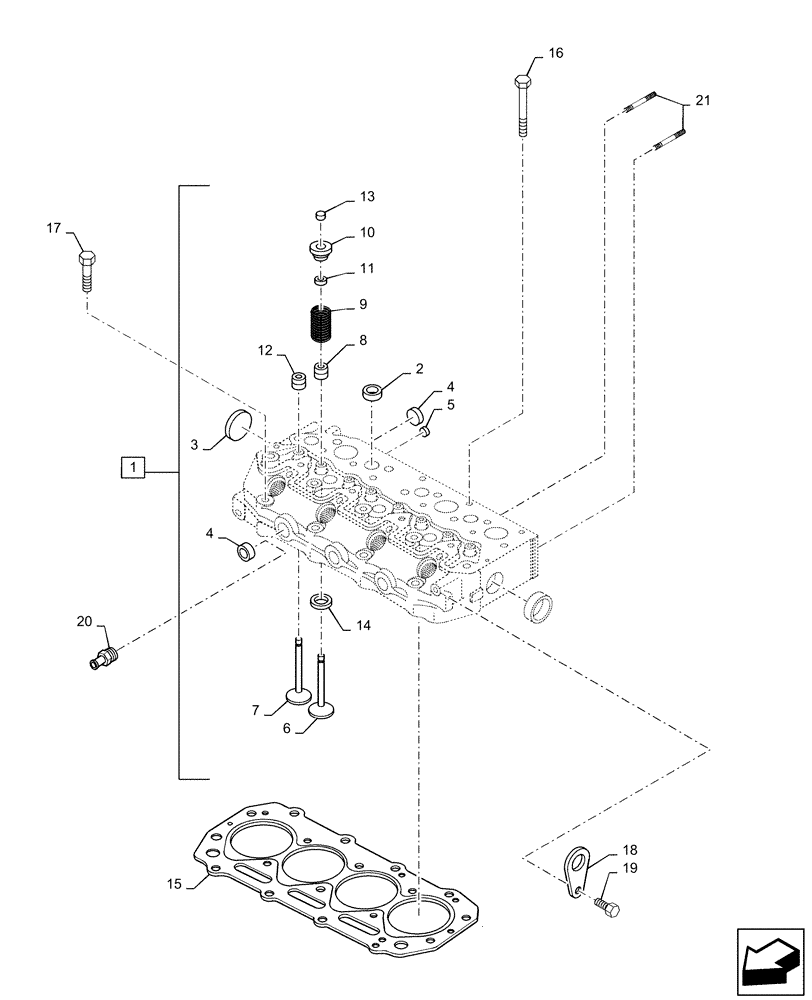

Схема запчастей Case SR175 - (10.101.AB) - CYLINDER HEAD (10) - ENGINE
14
9
19
1
10
20
11
15
4
8
2
7
4
18
12
6
16
5
13
3
17
21

Артикул

Название

Примечание

Количество

1

SBA111011130

CYLINDER HEAD

Incl. Ref 2 - 14

1шт.

1

SBA111011130R

REMAN-CYLINDER HEAD

1шт.

1

SBA111011130C

CORE-CYLINDER HEAD

Return Number

1шт.

2

SBA064210018

PLUG

Sealing

7шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210025

PLUG,25mm

4шт.

5

SBA064210010

PLUG,10mm

3шт.

6

SBA120166380

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

7

SBA120176391

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

8

SBA120406070

SEAL

Valve Guide, Intake

4шт.

9

SBA198216700

SPRING

8шт.

10

SBA120186080

RETAINER

8шт.

11

SBA120226070

RETAINER

Cotter

16шт.

12

SBA120406050

SEAL

Valve Guide, Exhaust

4шт.

13

SBA120216041

CAP

If Used

8шт.

14

SBA110136400

VALVE SEAT

Intake

4шт.

15

SBA111147751

CYLINDER HEAD GASKET,1.1mm Thk

1.1 Thickness; Metal Type

1шт.

15

SBA111147761

CYLINDER HEAD GASKET,1.2mm Thk

1.2 Thickness; Metal Type

1шт.

15

SBA111147771

CYLINDER HEAD GASKET,1.3mm Thk

1.3 Thickness; Metal Type

1шт.

16

SBA111136480

BOLT

Head

14шт.

17

SBA111136490

BOLT

Head

4шт.

18

SBA195816540

LIFTING EYE

2шт.

19

SBA011510816

BOLT

M8 x 16

2шт.

20

SBA198487901

CONNECTION

1шт.

21

SBA012110655

STUD

2шт.

Выбрано товаров: 25
