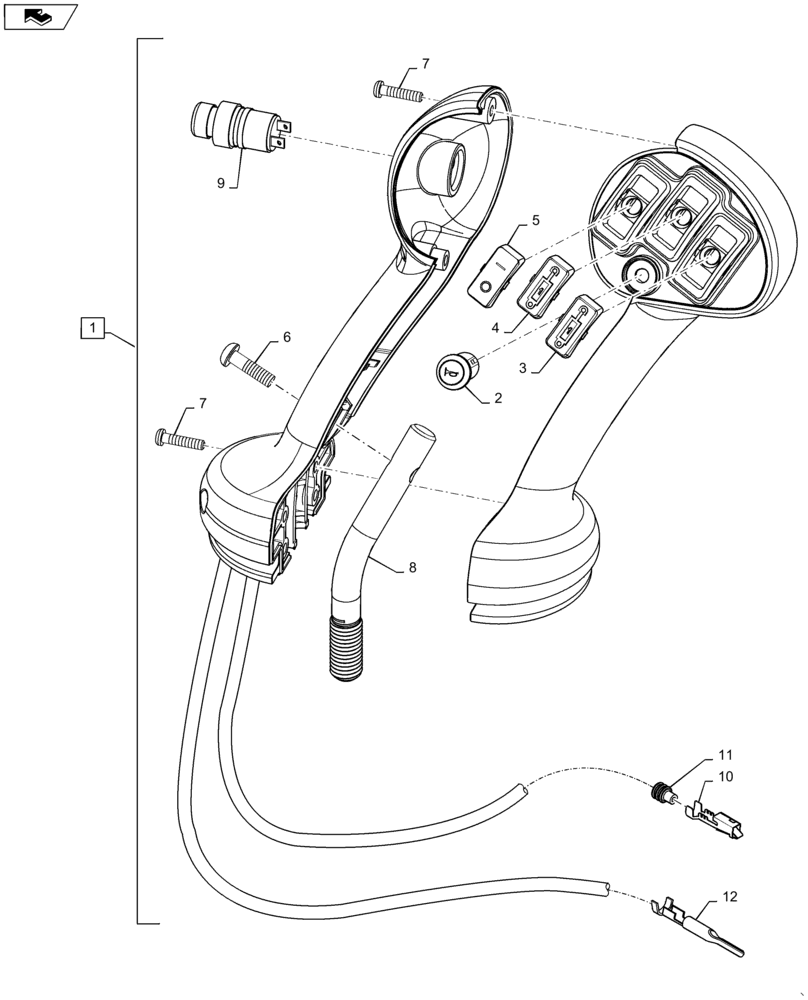

Запчасти Case SR175 (55.512.CL[12]) - LEVEL 300 HANDLE GRIP, LH (55) - ELECTRICAL SYSTEMS

1

84396068

HANDLE GRIP

LH, Level 300, Incl 2 - 12

1шт.

2

84296542

SWITCH ASSY

Horn

1шт.

3

84296546

SWITCH

Multifunction #2, 3 Position Rocker

1шт.

4

84296547

SWITCH

Multifunction #3, 3 Position Rocker

1шт.

5

84398133

SWITCH

Multifunction #4, 2 Position Rocker

1шт.

6

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

Control Handle

1шт.

7

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

Control Handle

6шт.

8

87652818

ROD

Handle Mounting, LH

1шт.

9

87673088

SWITCH

Push Button, 2 Speed

1шт.

10

221381A1

TERMINAL CONNECTOR,Female, 0.8 - 1 mm2

3шт.

11

87690548

PLUG,White, 2.15mm - 1.60mm

Cable Seal

3шт.

12

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

7шт.
