Запчасти Case SR175 (55.512.CL[04]) - RH SUB HANDLE, FOOT CONTROLS (55) - ELECTRICAL SYSTEMS

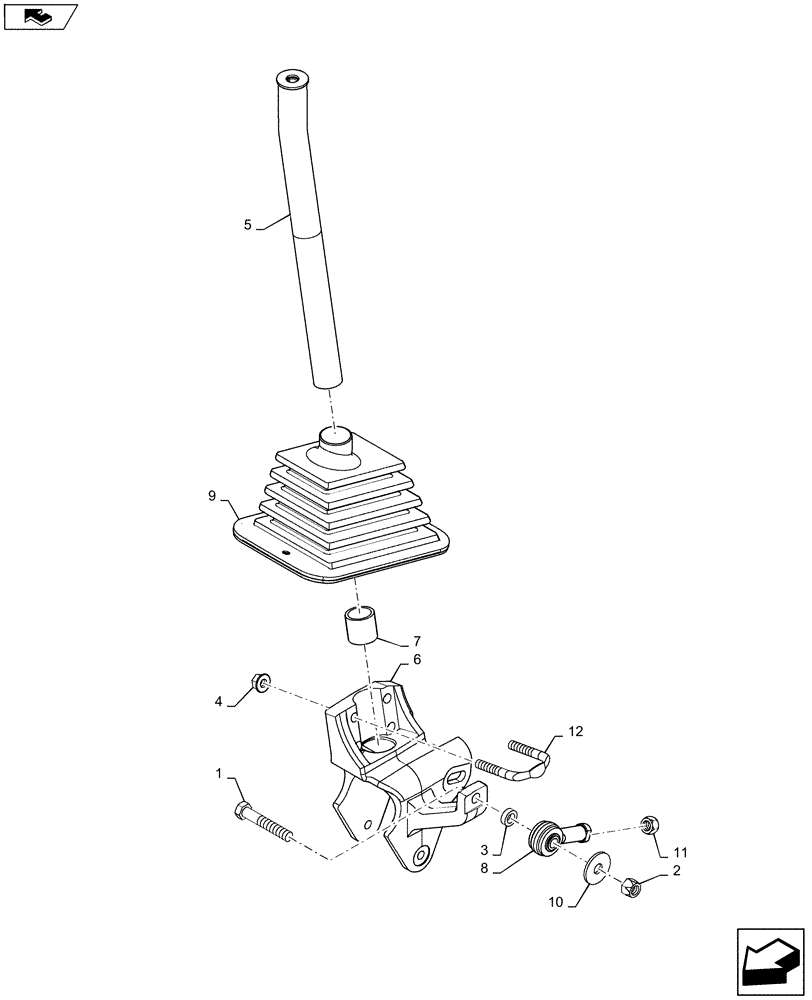

Схема запчастей Case SR175 - (55.512.CL[04]) - RH SUB HANDLE, FOOT CONTROLS (55) - ELECTRICAL SYSTEMS
7
8
1
5
9
4
11
3
2
10
6
12

Артикул

Название

Примечание

Количество

1

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

2

88902

NUT,3/8"-16

1шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

RH, Handle Pivot

4шт.

5

84349081

TUBE

407.82mm L, Foot Control Handle

1шт.

5

47551496

TUBE

405mm L, Foot Control Handle, Start Year: 01-AUG-13

1шт.

6

84351111

MOUNT

RH, Handle Pivot

1шт.

7

84410120

FOAM INSULATION,60mm OD x 27.4mm Thk

Plug

1шт.

8

84413003

EYE,3/8" - 24, LH Threads

Isolated Rod

1шт.

9

84531450

BOOT

RH, Control Handle, Foot Controls

1шт.

10

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

1шт.

11

87030547

NUT,3/8" - 24, LH Thd, Gr 5

1шт.

12

294901A1

U-BOLT,M8 x 1.25, Coined

2шт.

Выбрано товаров: 13
