Запчасти Case SR175 (55.512.CL[03]) - LH SUB HANDLE, FOOT CONTROLS (55) - ELECTRICAL SYSTEMS

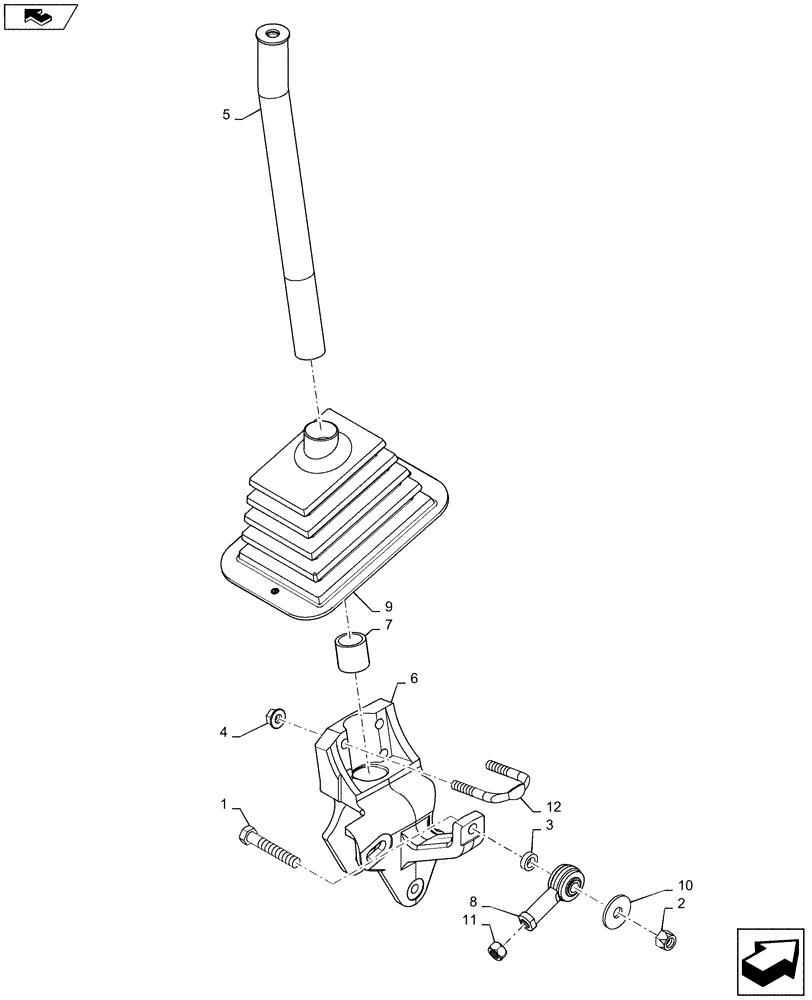

Схема запчастей Case SR175 - (55.512.CL[03]) - LH SUB HANDLE, FOOT CONTROLS (55) - ELECTRICAL SYSTEMS
12
7
6
4
5
8
3
2
11
10
home
1
9

Артикул

Название

Примечание

Количество

1

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

2

88902

NUT,3/8"-16

1шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

0.385" ID x 0.625" OD x 0.198", ZND

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

84349081

TUBE

Foot Control Handle

1шт.

5

47551499

TUBE

LH Foot Control Handle, Start Year: 01-AUG-13

1шт.

6

84351110

MOUNT

LH Handle Pivot

1шт.

7

84410120

FOAM INSULATION,60mm OD x 27.4mm Thk

Plug

1шт.

8

84413003

EYE,3/8" - 24, LH Threads

Isolated Rod

1шт.

9

84531817

BOOT

LH Control Handle, Foot Controls

1шт.

10

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

0.406" x 1.25" x 0.1", CST, ZND

1шт.

11

87030547

NUT,3/8" - 24, LH Thd, Gr 5

1шт.

12

294901A1

U-BOLT,M8 x 1.25, Coined

M8 - 1.25

2шт.

Выбрано товаров: 13
