Запчасти Case SR175 (55.512.CL[02]) - RH SUB HANDLE, HAND CONTROLS (55) - ELECTRICAL SYSTEMS

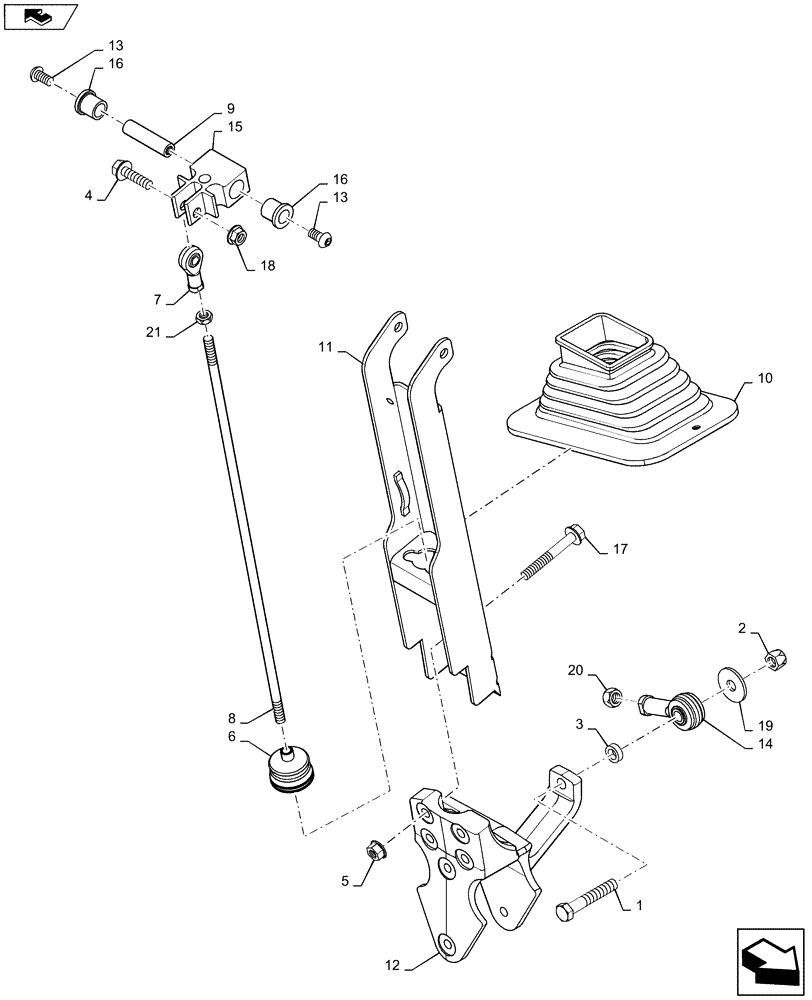

Схема запчастей Case SR175 - (55.512.CL[02]) - RH SUB HANDLE, HAND CONTROLS (55) - ELECTRICAL SYSTEMS
7
2
16
9
12
home
1
13
16
5
10
17
21
8
11
18
15
20
6
3
14
19
4
13

Артикул

Название

Примечание

Количество

1

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

2

88902

NUT,3/8"-16

1шт.

3

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

1шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

6

84201371

BOOT

Control Rod

1шт.

7

84263144

BALL JOINT,5/16" - 24

Hand Control

1шт.

8

84300731

THREADED ROD,7.94mm OD x 456mm L

Hand Control

1шт.

9

84302564

ROD,12.6mm OD x 50mm L

Grip Pivot

1шт.

10

84339565

BOOT

RH Control Handle

1шт.

11

84348730

HANDLE

Channel

1шт.

11

47535433

HANDLE

Channel, RH, Start Year: 01-AUG-13

1шт.

12

84351111

MOUNT

RH Handle Pivot

1шт.

13

84406845

SCREW,BTN HD, M8 x 1.25 x 16mm, Cl 10.9

2шт.

14

84413003

EYE,3/8" - 24, LH Threads

Isolated Rod

1шт.

15

84535678

KNUCKLE JOINT

Hand Control

1шт.

16

86013179

FLANGED BEARING,0.502" ID x 0.875" OD x 0.75" W

2шт.

17

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

3шт.

18

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

19

86625257

WASHER,0.41" ID x 1.25" OD x 0.1" Thk

1шт.

20

87030547

NUT,3/8" - 24, LH Thd, Gr 5

1шт.

21

87034513

JAM NUT,5/16" - 24, LH Thd, 0.195" High, Gr 5

1шт.

Выбрано товаров: 22
