Запчасти Case SR175 (10.001.ak[02]) - ENGINE, MOUNTING - EUROPE (10) - ENGINE

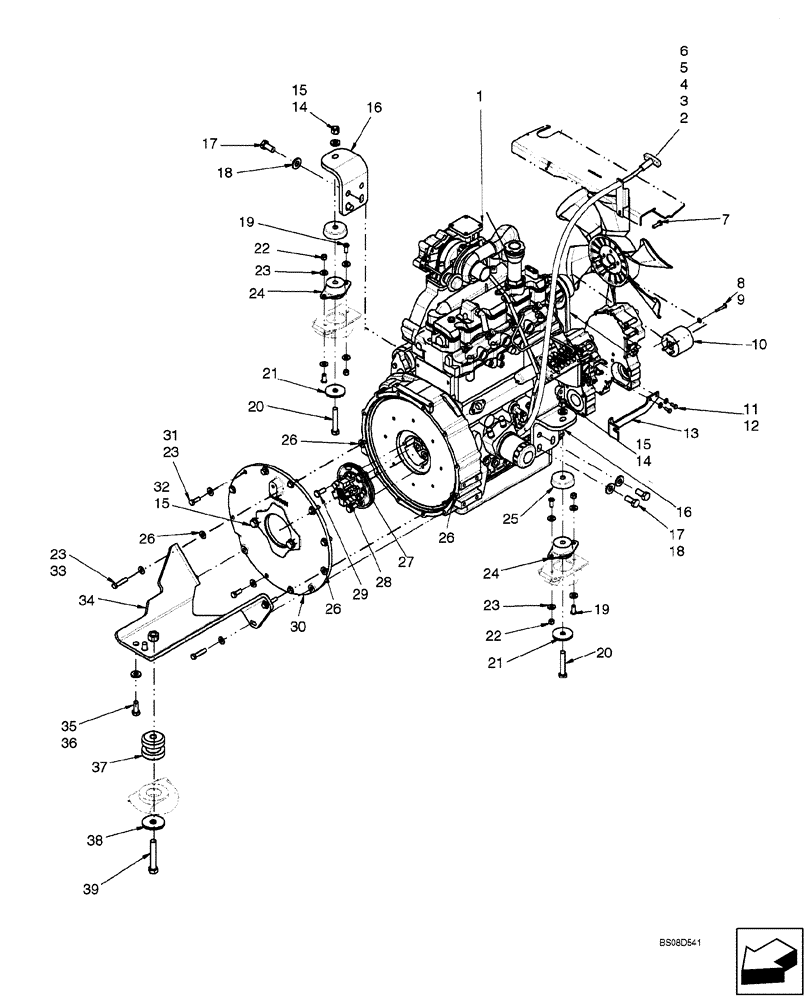

Схема запчастей Case SR175 - (10.001.ak[02]) - ENGINE, MOUNTING - EUROPE (10) - ENGINE
17
31
8
26
13
30
35
6
20
23
36
2
9
38
11
5
22
21
24
37
39
20
25
26
17
7
1
26
14
26
3
33
23
19
23
28
14
4
15
29
18
12
27
18
21
15
10
32
24
16
15
16
19
23
34
22

Артикул

Название

Примечание

Количество

1

SBA133734

ENGINE,44kW, 2.22L, 4 Cylinders, W/ Turbocharger

Long Block

1шт.

1

SBA133734R

REMAN-REPLACEMENT EN

Reman Long Block

1шт.

1

SBA133734C

CORE-ENGINE

Core Return Number

1шт.

1

SBA133734ER

REMAN-REPLACEMENT EN

Reman Long Block

1шт.

1

SBA133734EPAC

CORE-EPA ENGINE

EPA Core Return Number

1шт.

2

87527661

DIPSTICK

Incl. 3 - 6; If Used

1шт.

2

84139341

DIPSTICK,1268mm L

Incl, 3 - 6; If Used

1шт.

3

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

4

87527665

DIPSTICK

Engine Oil, 1268 mm (49.92 in); If Used

1шт.

4

87714629

DIPSTICK

Engine Oil, 1278 mm (50.31 in); If Used

1шт.

5

87532182

DIPSTICK

Hose

1шт.

6

87534525

DIPSTICK

Upper Bracket

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

10

87369335

SPACER

Fan

1шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

86501115

ENGINE MOUNT

1шт.

14

88871

NUT,1/2"-13, GC

2шт.

15

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

16

87430430

ANGLE

Bracket, Gray

2шт.

17

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

Hex HD M14 x 1.5 x 30

4шт.

18

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

19

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

20

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

21

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

2шт.

22

9628503

NUT,3/8"-16, G5

4шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

24

9616607

INSULATOR

2шт.

25

9844141

CUP

2шт.

26

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

27

87713744

PLASTIC

Plate, Flexible Coupler

1шт.

Need Callouts # 27 & # 28 to Make It Work

1шт.

28

87713745

CLUTCH,15T

Hub Star

1шт.

Need Callouts # 27 & # 28 to Make It Work

1шт.

29

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

30

86567000

COVER

Housing

1шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

32

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

33

280589

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

4шт.

34

87594375

BRACKET

Pump Support

1шт.

35

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

36

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

37

9844553

INSULATOR

1шт.

38

719922

WASHER,M17 x 63 x 1/4" Thk

1шт.

39

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.

Выбрано товаров: 47
