Запчасти Case SR175 (50.200.AT) - HVAC AIR COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL

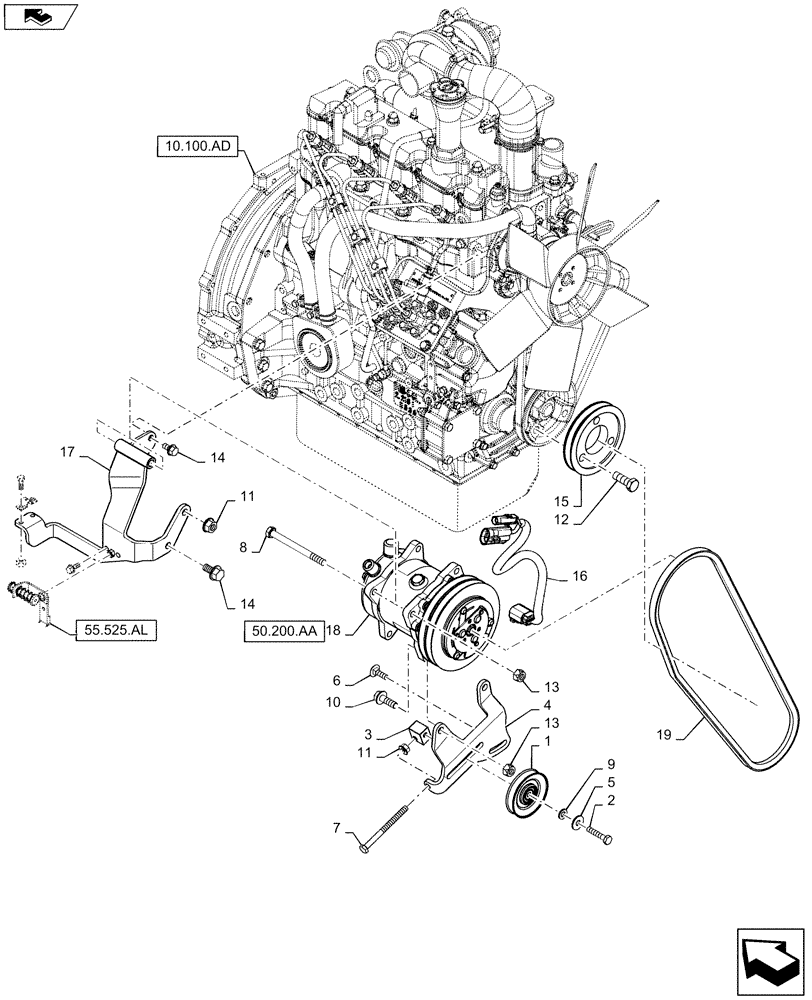

Схема запчастей Case SR175 - (50.200.AT) - HVAC AIR COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL
15
9
6
4
10.100.ad
7
50.200.aa
5
2
55.525.al
home
11
8
10
13
11
14
13
18
16
17
12
1
19
14
3

Артикул

Название

Примечание

Количество

1

87606706

PULLEY,78.49mm OD

1шт.

2

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

3

87582270

BLOCK

1шт.

4

84378693

BRACKET

1шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

6

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

7

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

1шт.

8

7120985

BOLT,Hex, M10 x 115mm, Cl 10.9

1шт.

9

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

12

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

13

86512554

NUT,M10 x 1.5, Cl 10

2шт.

14

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

15

86405134

PULLEY

1шт.

16

84423509

WIRE HARNESS

1шт.

17

84321278

BRACKET, PIVOT

1шт.

18

84321962

AIRCOND. COMPRESSOR

, Years: -01-DEC-14

1шт.

18

84321962R

REMAN-COMPRESSOR

, Years: -01-DEC-14

1шт.

18

84321962C

AIRCOND. COMPRESSOR

Return Number, Years: -01-DEC-14

1шт.

18

47741863

AIRCOND. COMPRESSOR

, Start Year: 01-DEC-14

1шт.

18

47741863R

REMAN-A/C COMPRESSOR

, Start Year: 01-DEC-14

1шт.

18

47741863C

CORE-A/C COMPRESSOR

Return Number, Start Year: 01-DEC-14

1шт.

19

84323065

BELT

1шт.

Выбрано товаров: 24
