Запчасти Case SR175 (50.100.AC[01]) - HEATER PLUMBING (50) - CAB CLIMATE CONTROL

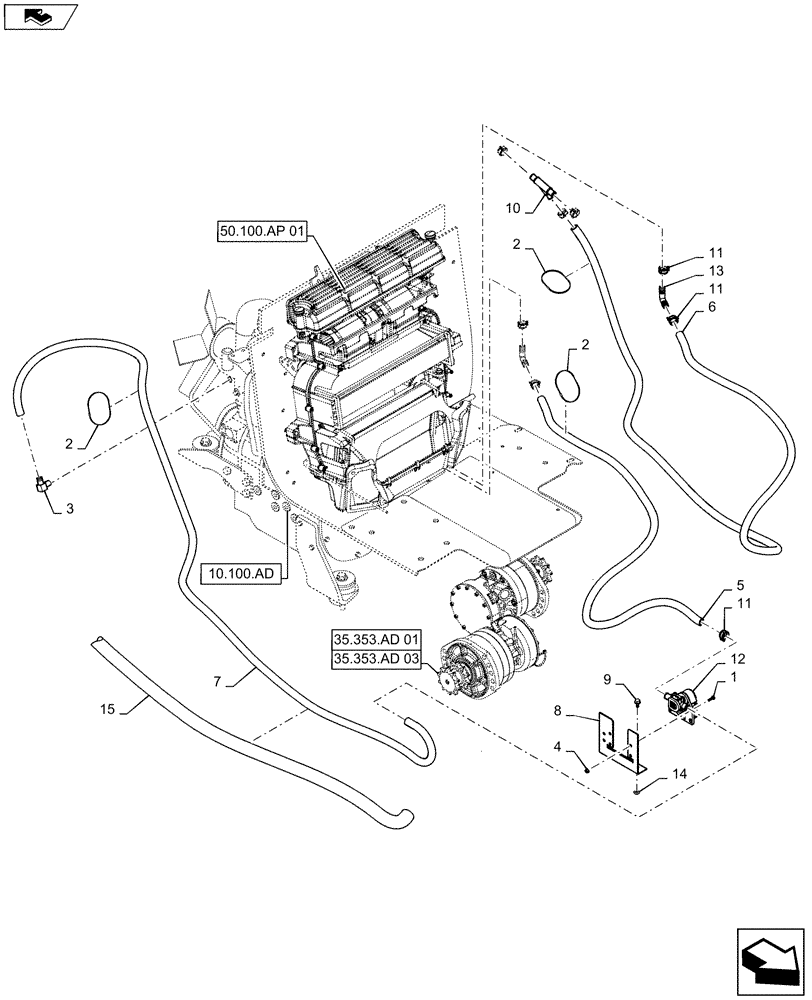

Схема запчастей Case SR175 - (50.100.AC[01]) - HEATER PLUMBING (50) - CAB CLIMATE CONTROL
5
50.100.ap 01
3
13
9
8
14
11
6
11
12
2
2
35.353.ad 01
1
15
7
11
home
10.100.ad
35.353.ad 03
2
4
10

Артикул

Название

Примечание

Количество

1

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

3шт.

3

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

5

84357678

HOSE,15.5mm ID x 1635mm L

1шт.

6

84357840

HOSE,15.5mm ID x 2740mm L

1шт.

7

84357844

HOSE,15.5mm ID x 2825mm L

1шт.

8

84559122

BRACKET

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

86530043

FITTING,5/8” Y-Fitting

1шт.

11

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

10шт.

12

87520839

VALVE

1шт.

13

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

14

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

15

87441006

TUBE,4.6mm ID x 1350mm L

1шт.

Выбрано товаров: 15
