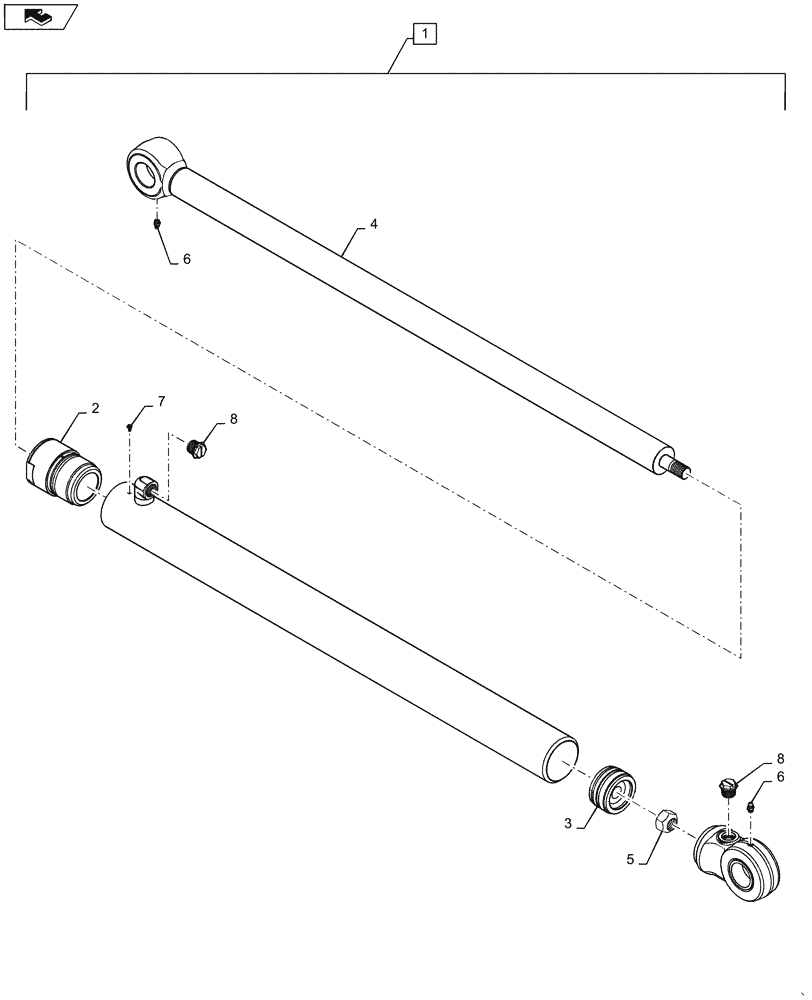

Запчасти Case SR175 (35.701.CB) - BOOM LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

47364865

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 804.9mm Stroke

Lift Cylinder, Complete, Incl 2 - 9

1шт.

47364865R

LIFT CYLINDER

SR175 BOOM LIFT CYLINDER TIER 4B, SR175 BOOM LIFT CYLINDER, Both 03/13

1шт.

47364865C

LIFT CYLINDER

Return Number

1шт.

2

47364894

GLAND,57.2mm Bore, 38.1mm Rod, 94.8mm W

Lift Cylinder, 38.1mm Rod, 57.2mm Bore

1шт.

3

84304959

PISTON

Lift Cylinder, 38.1mm Rod, 57.2mm Bore

1шт.

4

47364900

ROD

Lift Cylinder, 38.1mm

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

7

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

8

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4" - 16

2шт.

9

47364909

SERVICE KIT

Lift Cylinder Seal Kit, Not Illustrated

1шт.
