Запчасти Case SR175 (35.353.AD[06]) - TRAVEL SPEED, E-H (35) - HYDRAULIC SYSTEMS

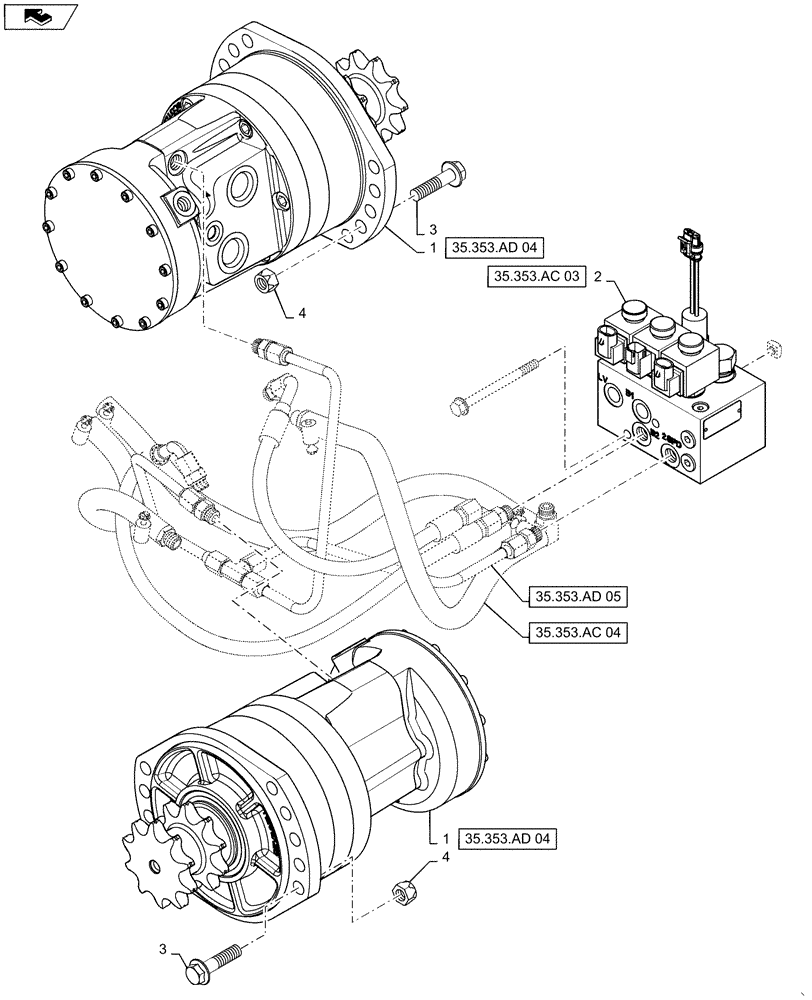

Схема запчастей Case SR175 - (35.353.AD[06]) - TRAVEL SPEED, E-H (35) - HYDRAULIC SYSTEMS
35.353.ac 04
home
2
3
1
3
1
4
4
35.353.ad 05
35.353.ac 03
35.353.ad 04
35.353.ad 04

Артикул

Название

Примечание

Количество

1

84565750

HYDRAULIC MOTOR,325CC

325CC 2 Speed With Seal, E-H

2шт.

1

84565750R

REMAN-HYD MOTOR

Reman for PN 84565750

2шт.

84565750C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

84597128

BRAKE VALVE

EH 2 Speed Valve

1шт.

3

87670764

BOLT,M12 x 61.8mm, Cl 10.9

M12 X 50

16шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

16шт.

Выбрано товаров: 6
