(35.353.AC[02]) - TRAVEL SPEED 1SPD (SR175,SV185)

Запчасти Case SR175 (35.353.AC[02]) - TRAVEL SPEED 1SPD (SR175,SV185) (35) - HYDRAULIC SYSTEMS

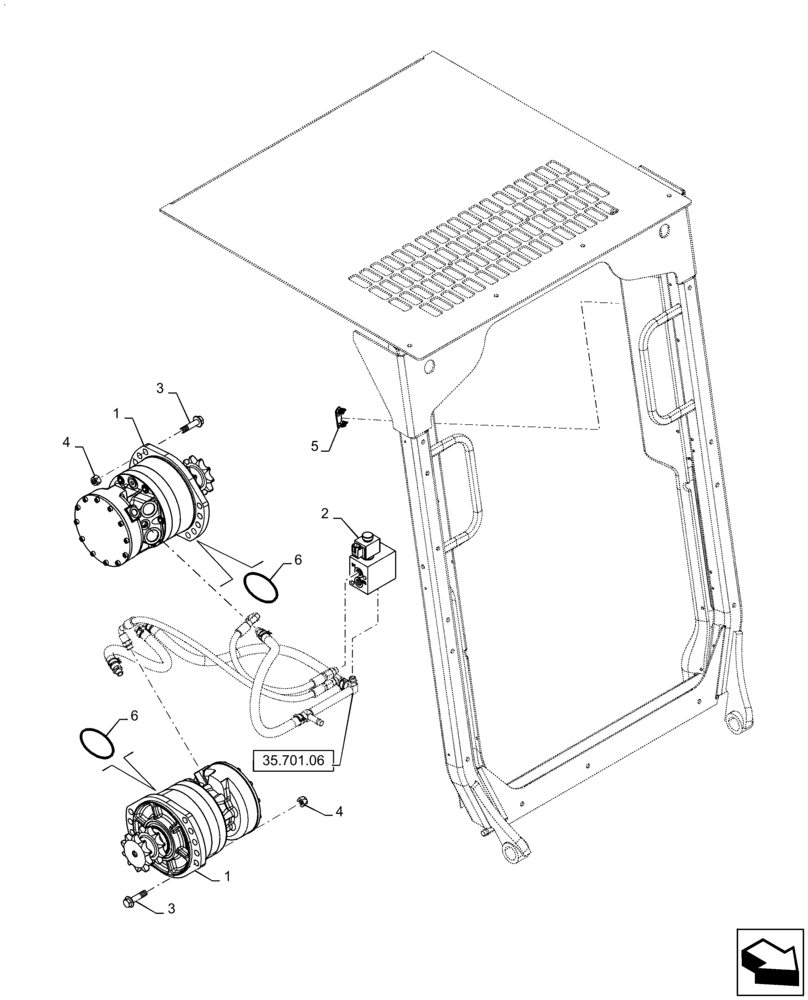

Схема запчастей Case SR175 - (35.353.AC[02]) - TRAVEL SPEED 1SPD (SR175,SV185) (35) - HYDRAULIC SYSTEMS
1
4
5
4
35.701.06
3
6
6
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84256614

HYDRAULIC MOTOR

325cc 1Spd W/Seal

2шт.

1

84565749R

REMAN-HYD MOTOR

Reman for New P/N 84256614

2шт.

1

84565749C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

84256530

BRAKE VALVE

1шт.

3

87670764

BOLT,M12 x 61.8mm, Cl 10.9

16шт.

4

412672

NUT,Hex, M12 x 1.75, Cl 10

16шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

1шт.

6

84293381

SEAL KIT

Services 1

1шт.
