(35.220.AA[02]) - AUX HYD, HIGH FLOW (SR175)(SV185)

Запчасти Case SR175 (35.220.AA[02]) - AUX HYD, HIGH FLOW (SR175)(SV185) (35) - HYDRAULIC SYSTEMS

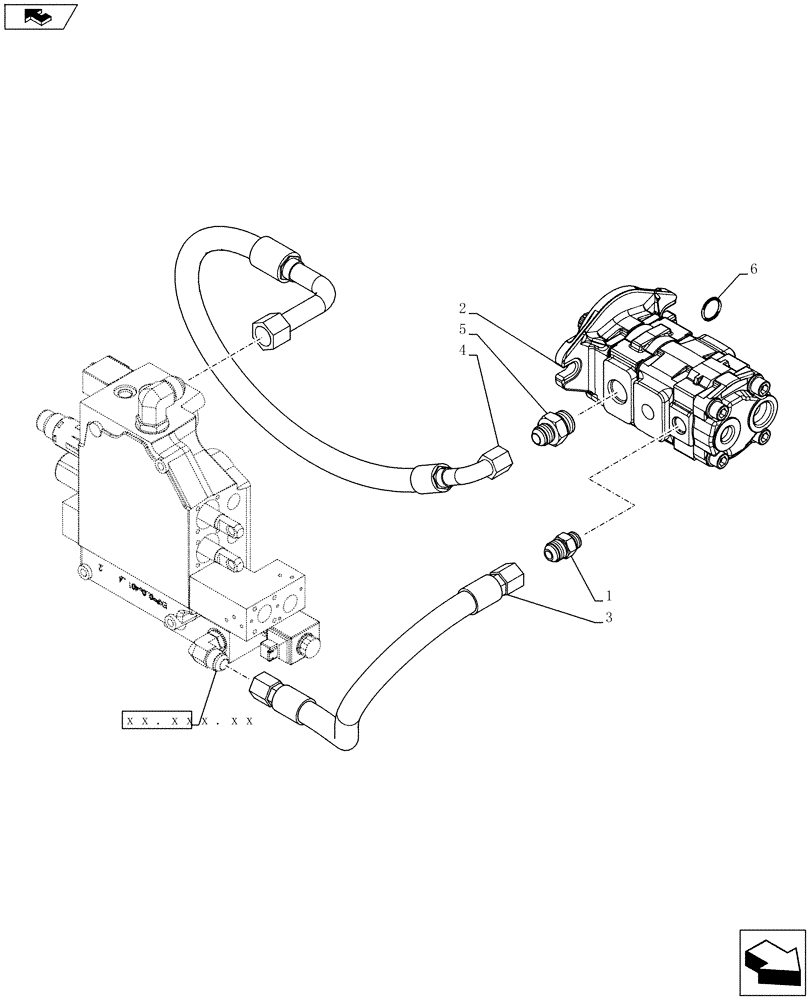

Схема запчастей Case SR175 - (35.220.AA[02]) - AUX HYD, HIGH FLOW (SR175)(SV185) (35) - HYDRAULIC SYSTEMS
1
6
xx.xxx.xx
5
4
2
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

2

84256518

PUMP,24.9 CC

24.9/12.5CC Gear

1шт.

3

84329004

HOSE,15.88mm ID x 586mm L, SAE 100R17

Assembly, High Flow Supply

1шт.

4

84330502

HOSE,9.53mm ID x 830mm L, SAE 100R17

Assembly, Valve Supply

1шт.

5

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

1шт.

6

84389262

SEAL KIT

Double Pump

1шт.
