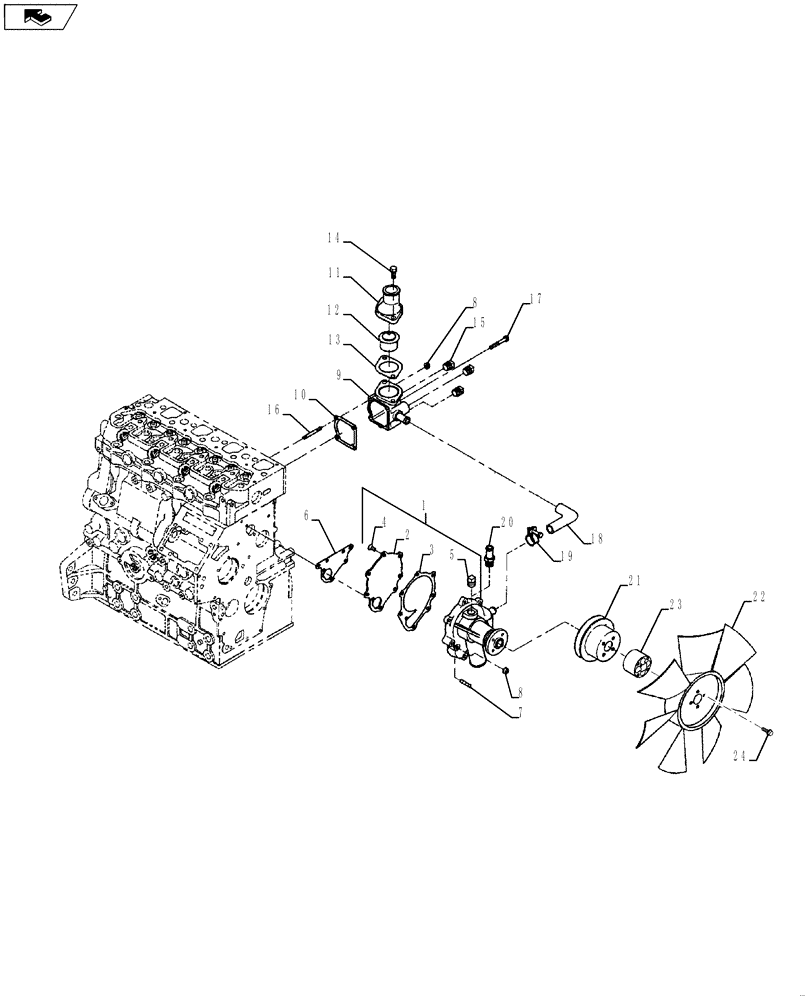

Запчасти Case SR175 (10.402.01) - WATER PUMP (10) - ENGINE

1

SBA145017730

WATER PUMP

Incl. Ref 2 - 5

1шт.

1

SBA145017730R

REMAN-WATER PUMP

1шт.

1

SBA145017730C

CORE-WATER PUMP

Return Number

1шт.

2

SBA145146320

PLATE

Set

1шт.

3

SBA145996680

GASKET

1шт.

4

SBA015300614

SCREW

5шт.

5

SBA064500030

PLUG,3/8"

4шт.

6

SBA145996670

GASKET

Water Pump, BSN 101384

1шт.

6

SBA145996990

GASKET

Water Pump, ASN 101384

1шт.

7

SBA012110635

STUD

4шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

9

SBA145216640

HOUSING

Thermostat

1шт.

10

SBA145996710

GASKET

1шт.

11

SBA145226340

COVER

Thermostat

1шт.

12

SBA145206220

THERMOSTAT,71 Degrees C (160 Degrees F)

1.875" OD x 2.2" H

1шт.

13

SBA145996051

GASKET

1шт.

14

SBA010800820

BOLT

2шт.

15

SBA064500030

PLUG,3/8"

3шт.

16

SBA012100655

STUD

2шт.

17

SBA011310655

BOLT,Hex, M6 x 55, Cl 8.8

2шт.

18

SBA145336051

HOSE

1шт.

19

SBA067100022

HOSE CLAMP

2шт.

20

SBA198487870

NIPPLE

1шт.

21

84298023

PULLEY,135mm OD

1шт.

22

47426353

FAN,9 Blades, 450mm OD

, Years: 01-APR-11-01-JUL-12

1шт.

22

47408215

FAN,5 Blades, 440mm OD

, Start Year: 02-JUL-12

1шт.

23

47402648

SPACER,47.5mm W

1шт.

24

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

4шт.
