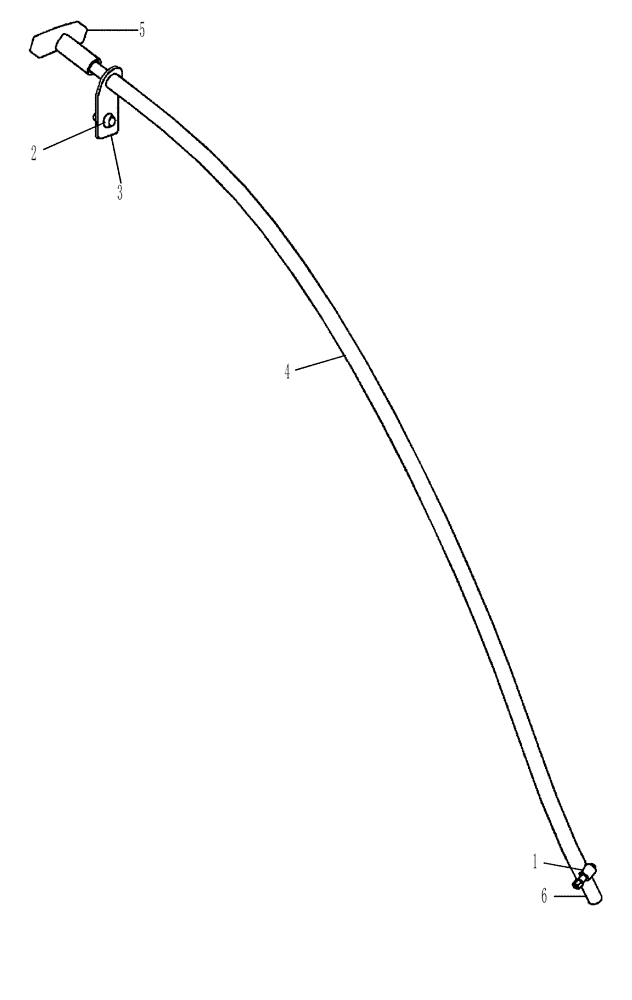

Запчасти Case SR175 (10.304.AS) - REMOTE, DIPSTICK ISM (SR175,SV185) (10) - ENGINE

1

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

2

84163981

FLANGE BOLT,Hex, M6 x 20.56mm

M6x15

1шт.

3

84259455

BRACKET

Dipstick Tube

1шт.

4

87454494

HOSE,12.7mm ID x 866mm L

Dipstick

1шт.

5

87713795

DIPSTICK,1109mm L

Engine

1шт.

6

Not Used

1шт.

7

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

(Not Shown) Use to mount Ref. 3

1шт.
