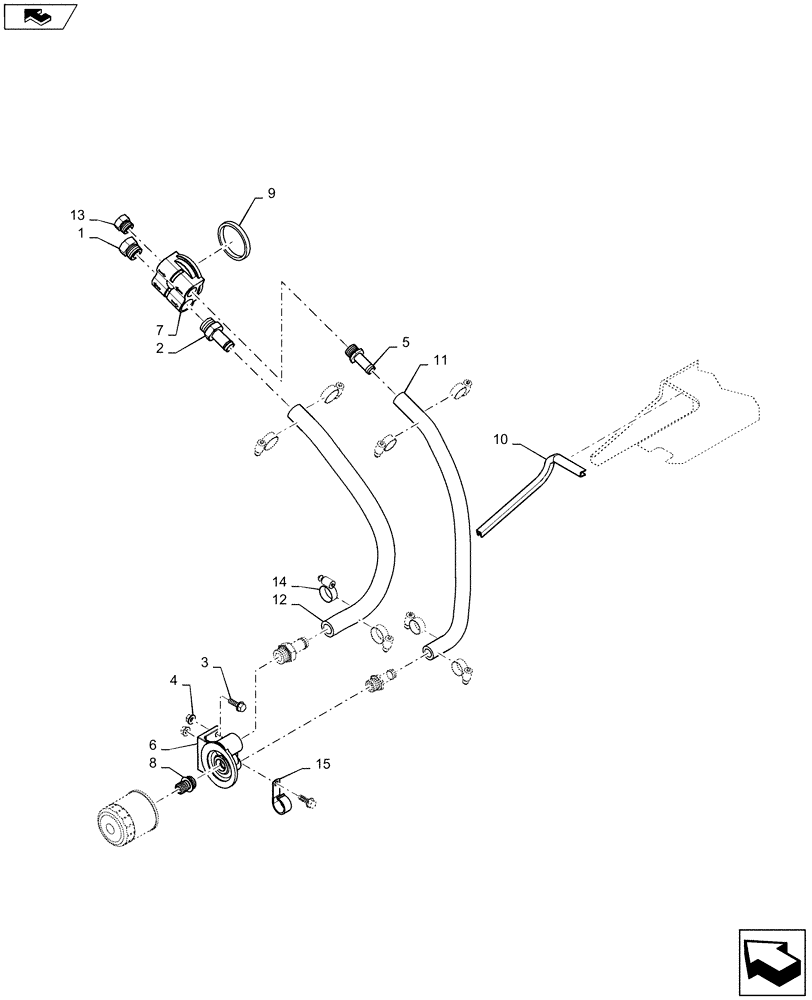

Запчасти Case SR175 (10.304.AF[01]) - REMOTE ENGINE OIL FILTER, LINES (NEW STYLE) (SR175,SV185) (10) - ENGINE

1

163410

PLUG,1-1/16" - 12 ORB

1шт.

2

614661

FITTING,1-1/16" - 12 ORB x 3/4" Hose, Beaded

2шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

6

84296830

ADAPTER

Oil filter

1шт.

7

84296855

ADAPTER

Remote Oil Filter

1шт.

8

84297795

ADAPTER

Filter Head

1шт.

9

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

Oil filter

1шт.

10

84554254

TRIM,30480mm L

210mm, Edge

1шт.

11

47637519

HOSE,15.9mm ID x 580mm L, SAE 100R6

1шт.

12

47637522

HOSE,19.1mm ID x 580mm L, SAE 100R6

1шт.

13

86512512

PLUG,7/8" - 14 ORB

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

8шт.

15

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.
