Запчасти Case SR175 (10.216.AI) - FUEL SYSTEM ISM (SR175, SV185) (10) - ENGINE

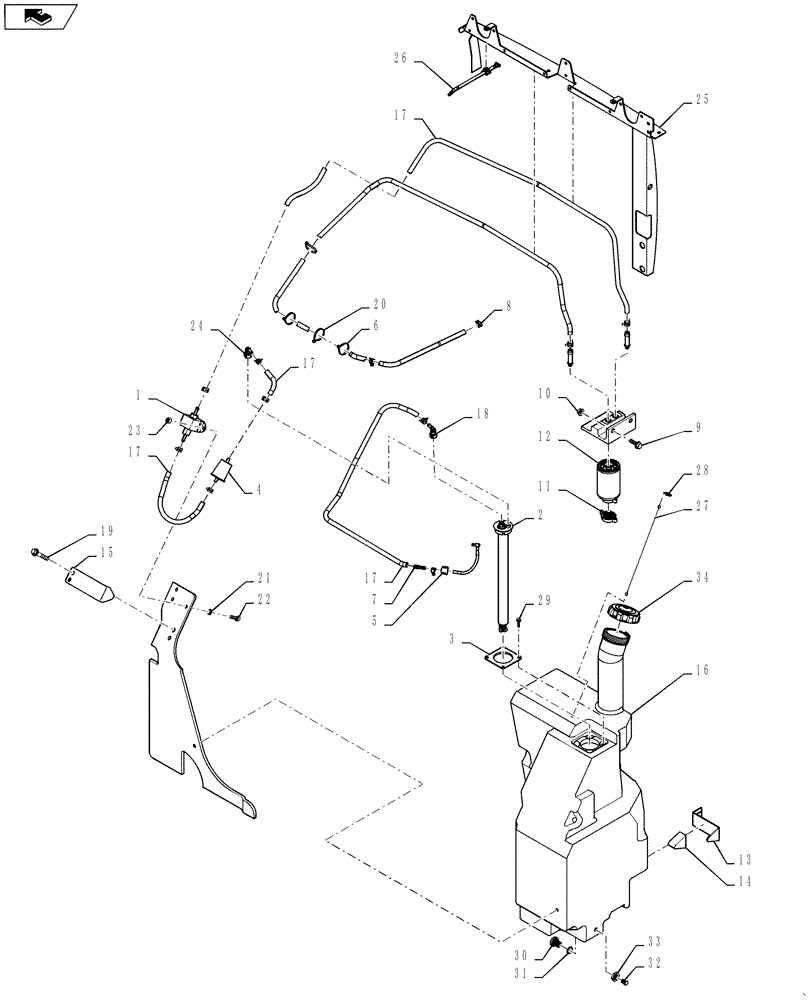

Схема запчастей Case SR175 - (10.216.AI) - FUEL SYSTEM ISM (SR175, SV185) (10) - ENGINE
20
26
6
12
5
10
1
19
4
31
7
28
15
18
34
17
21
24
25
17
home
3
27
17
22
8
16
13
33
14
17
29
9
32
23
11
2
30

Артикул

Название

Примечание

Количество

1

84130988

FUEL PUMP,12V, 1.4A

Electric Lift

1шт.

2

84268571

SENDER UNIT

Fuel

1шт.

3

84338049

MOUNTING PLATE

Sender Retaining

1шт.

4

9611973

FUEL FILTER

1шт.

5

291260

HOSE,5/32" ID

.6ft, Fuel Line

1шт.

6

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

7

84298470

ADAPTER

Fuel Fitting

1шт.

8

87436932

CLAMP,13.9mm - 15.5mm, Spring

CTB

10шт.

9

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

11

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

Assembly, Incl. 11A

1шт.

12

84299976

FILTER ASSY

Assembly, Incl 11A

2шт.

11a

84299977

ELEMENT

Fuel Filter

1шт.

13

87054825

SUPPORT

Tank

1шт.

14

84373790

FOAM

Pad

2шт.

15

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

16

84239312

FUEL TANK

Fuel Tank

1шт.

17

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

18

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

Fitting, 3/8

1шт.

19

84273624

BRACKET

Fuel Tank

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon Tie, 7-8in

4шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

22

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

M6, 6.85 X 12.75 X 1.8

2шт.

23

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

24

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

Fitting, 5/16

1шт.

25

NSS

NOT SOLD SEPARAT

Edge Channel, 85.3mm

1шт.

26

84259663

CABLE TIE,228.6mm L, Nylon, Black

Tie

4шт.

27

84370069

CHAIN

Fuel Cap

1шт.

28

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap, Locking

1шт.

29

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

30

9576801

PLUG,1/4" - 18 NPT

Hex 1/4-18

1шт.

31

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

32

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fitting, Fuel Tank Drain

1шт.

33

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fitting, Fuel Tank Drain

1шт.

34

48088756

W/Check Valve

FILLER CAP

1шт.

Выбрано товаров: 35
