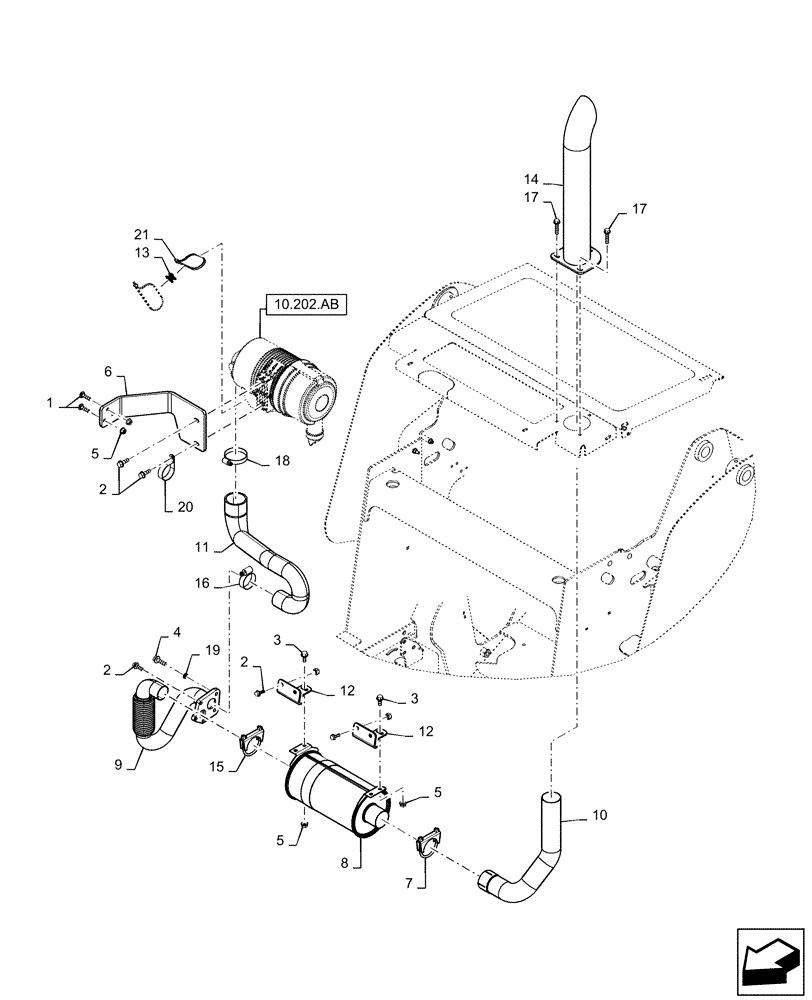

Запчасти Case SR175 (10.202.AD) - ENGINE, EXHAUST SYSTEM MED ISM R (SR175) (10) - ENGINE

1

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

3шт.

2

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

6

47389924

BRACKET

Air Cleaner

1шт.

7

47541188

CLAMP,68mm ID, Muffler

Muffler To Exhaust Pipe

1шт.

8

84287171

MUFFLER,Aspirated

Spark Arresting

1шт.

9

84287177

TUBE

Exhaust Flexible

1шт.

10

84304443

EXHAUST SYSTEM PIPE

Exhaust Tailpipe

1шт.

11

84307950

A/C HOSE

Air Cleaner To Muffler

1шт.

12

84308151

MOUNTING PLATE

Muffler

2шт.

13

84318895

SPACER,17.97mm H

Air Cleaner To Muffler Hose

1шт.

14

84495949

EXTENSION

Exhaust Stack

1шт.

15

84588569

CLAMP,54mm ID, Muffler

1шт.

16

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

17

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

3шт.

18

70922199

HOSE CLAMP,324mm - 359mm

Air Cleaner To Exhaust Hose

1шт.

19

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

20

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

21

529070

CABLE TIE,368.3mm L

2шт.
