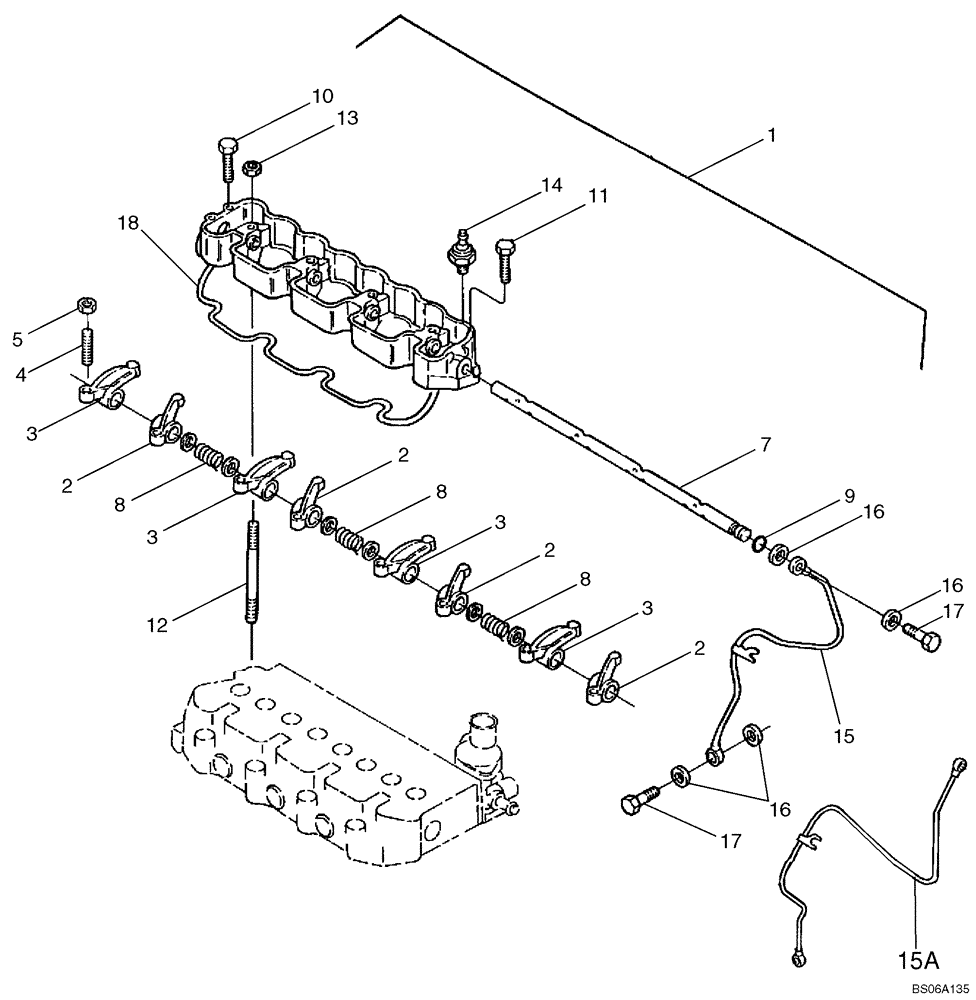

Запчасти Case SR175 (10.106.02) - ROCKER ARMS (10) - ENGINE

1

SBA120036393

ROCKER ARM

Incl. Ref 2 - 9

1шт.

2

SBA120356131

ROCKER ARM

Intake, Complete

4шт.

3

SBA120356141

ROCKER ARM

Exhaust, Complete

4шт.

4

SBA199486220

ADJUSTMENT SCREW

8шт.

5

SBA020109076

NUT

8шт.

7

SBA120316200

SHAFT

Rocker Arm

1шт.

8

SBA198217170

SPRING

3шт.

9

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

10

SBA011310650

BOLT

1шт.

11

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

1шт.

12

SBA012109044

STUD

4шт.

13

SBA023109002

NUT

4шт.

14

SBA185246060

SENDER UNIT

Oil Pressure Switch

1шт.

15

SBA140607090

TUBE

Oil; If Used

1шт.

15a

SBA140607020

RIGID TUBE

If Used

1шт.

16

SBA140996260

SEAL

4шт.

17

SBA198486780

BANJO BOLT

M8 x 1.25; If Used

2шт.

17

SBA198487840

SCREW

M10 x 1.5; If Used

2шт.

18

SBA052109074

O-RING,3mm Thk x 368mm ID, 70 Duro

1шт.
