Запчасти Case SR175 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

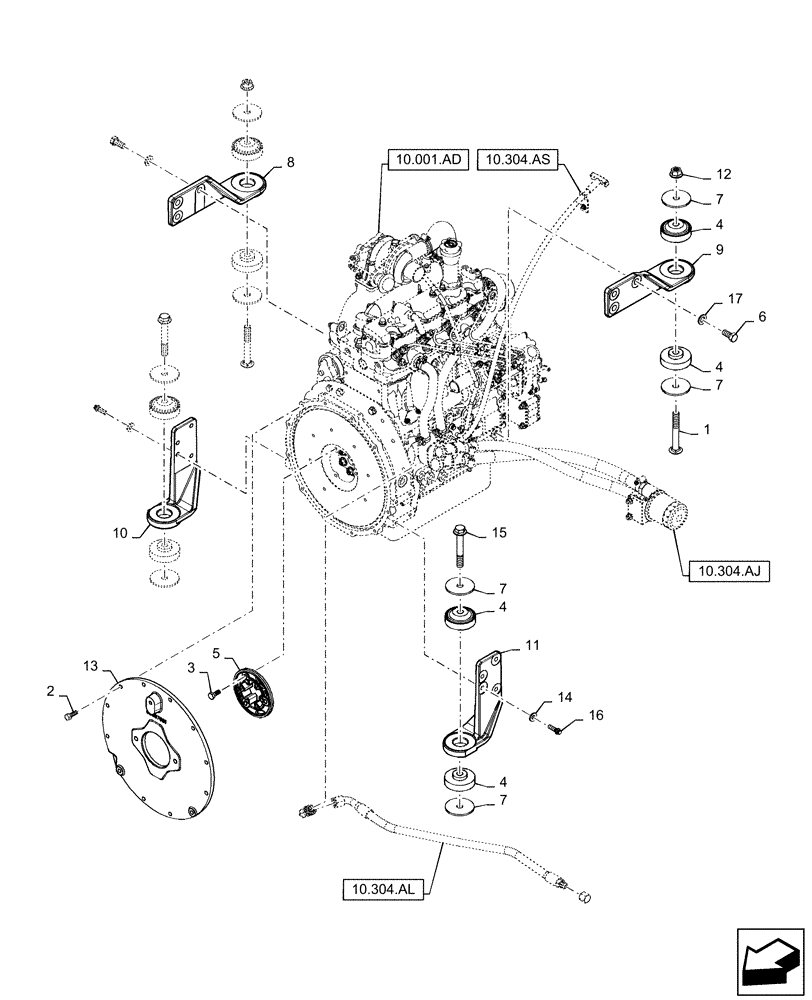

Схема запчастей Case SR175 - (10.001.AK) - ENGINE MOUNT (10) - ENGINE
2
10.304.as
11
7
16
3
7
10.304.aj
10.001.ad
15
4
4
13
14
9
1
12
10
7
10.304.al
7
8
6
17
4
5
4

Артикул

Название

Примечание

Количество

1

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

3

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

4

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

8шт.

5

87713744

PLASTIC

Coupler Plate

1шт.

6

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

1шт.

7

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

8шт.

8

84530879

MOUNT

ISM Engine, RH

1шт.

9

84530880

MOUNT

ISM Engine, LH

1шт.

10

84530883

MOUNT

ISM Engine, RH

1шт.

11

84530885

MOUNT

ISM Engine, LH

1шт.

12

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

13

86567000

COVER

Housing

1шт.

14

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

15

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

16

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

4шт.

17

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

6шт.

Выбрано товаров: 17
