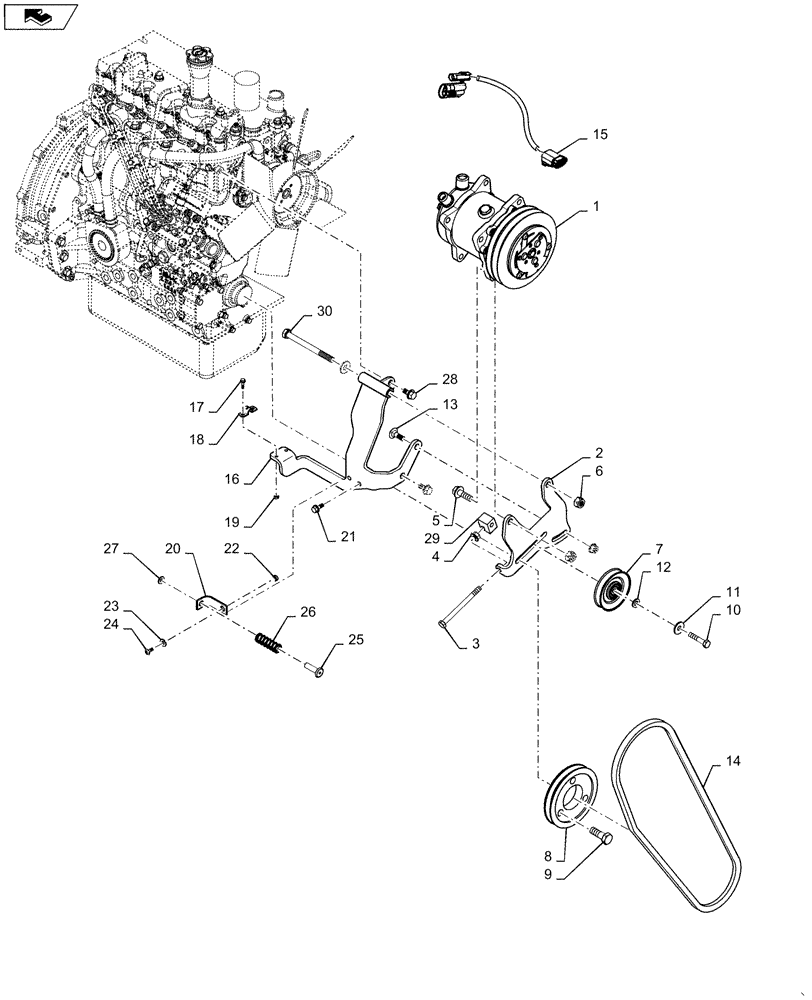

Запчасти Case SR175 (50.200.AA) - AIR CONDITIONER, COMPRESSOR (SR175, SV185) (50) - CAB CLIMATE CONTROL

1

84321962

AIRCOND. COMPRESSOR

1шт.

1

84321962R

REMAN-COMPRESSOR

1шт.

1

84321962C

AIRCOND. COMPRESSOR

Return Number

1шт.

2

84378693

BRACKET

Compressor Pivot

1шт.

3

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

6

86512554

NUT,M10 x 1.5, Cl 10

2шт.

7

87606706

PULLEY,78.49mm OD

A/C

1шт.

8

86405134

PULLEY

Compact A/C

1шт.

9

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

10

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

11

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

13

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

1шт.

14

84323065

BELT

V Belt, A/C Drive

1шт.

15

84423509

WIRE HARNESS

HVAC Jumper, To Condenser

1шт.

16

84321278

BRACKET, PIVOT

W Compressor, Gray

1шт.

17

87036224

BOLT,Flng, M4 x 16mm, Cl 4.8

M4 X 16

2шт.

18

84200938

CLAMP

Throttle Cable

1шт.

19

100012

NUT,M4 x 0.7, Cl 8

2шт.

20

9844532

BRACKET

1шт.

21

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

22

13734

SPACER,6.52mm ID x 9.52mm OD x 3.43mm W

1шт.

23

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

1шт.

24

84821

SCREW,Truss HD, #10 - 24 x 1/2"

1шт.

25

9860169

RIVET,10-32 Thread, 19.6mm Shoulder

Drilled

1шт.

26

84286072

SPRING

Throttle

1шт.

27

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

1шт.

28

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

Top And Bottom Of Pivot Bracket

2шт.

29

87582270

BLOCK

Idler Adjust

1шт.

30

7120985

BOLT,Hex, M10 x 115mm, Cl 10.9

Cap

1шт.
