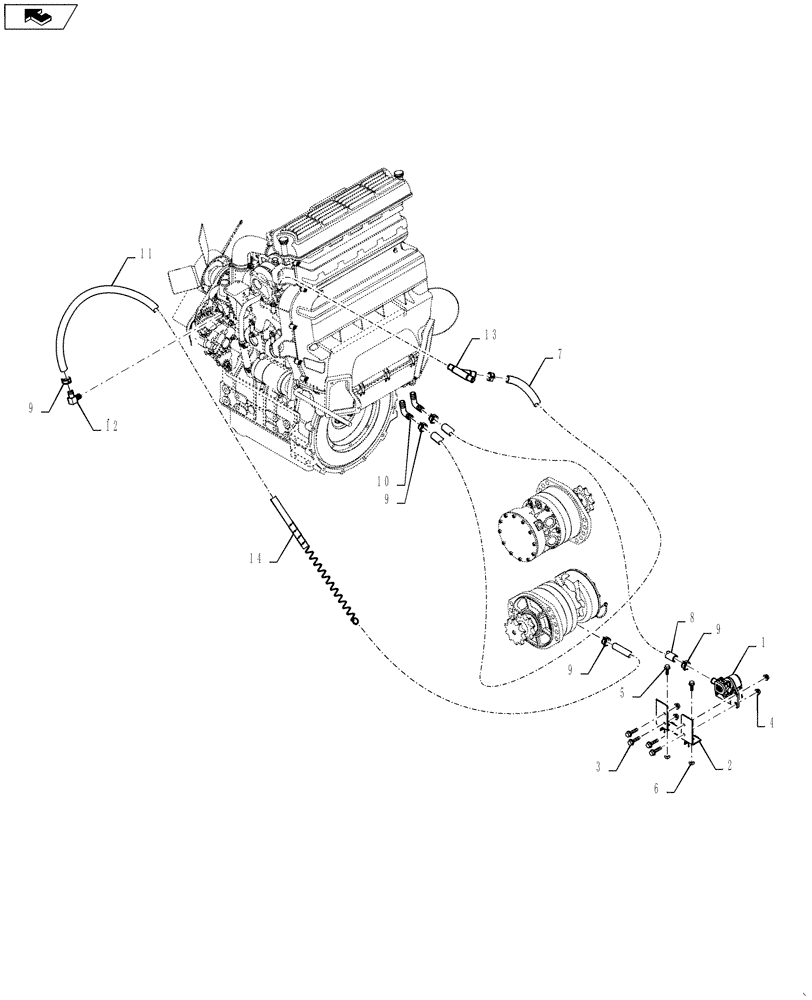

Запчасти Case SR175 (50.100.AC[01]) - HEATER PLUMBING BASIC (SR175,SV185) (50) - CAB CLIMATE CONTROL

1

87520839

VALVE

Assembly

1шт.

2

84247845

BRACKET

Water Valve and Dryer

1шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

5

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

6

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

7

84357840

HOSE,15.5mm ID x 2740mm L

Heater Return, Guarded

1шт.

8

84357678

HOSE,15.5mm ID x 1635mm L

Heater Supply, Guarded

1шт.

9

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Spring

10шт.

10

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

11

84357844

HOSE,15.5mm ID x 2825mm L

Heater Supply, Guarded

1шт.

12

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.

13

86530043

FITTING,5/8” Y-Fitting

Hose

1шт.

14

87441006

TUBE,4.6mm ID x 1350mm L

AC Hose

1шт.
