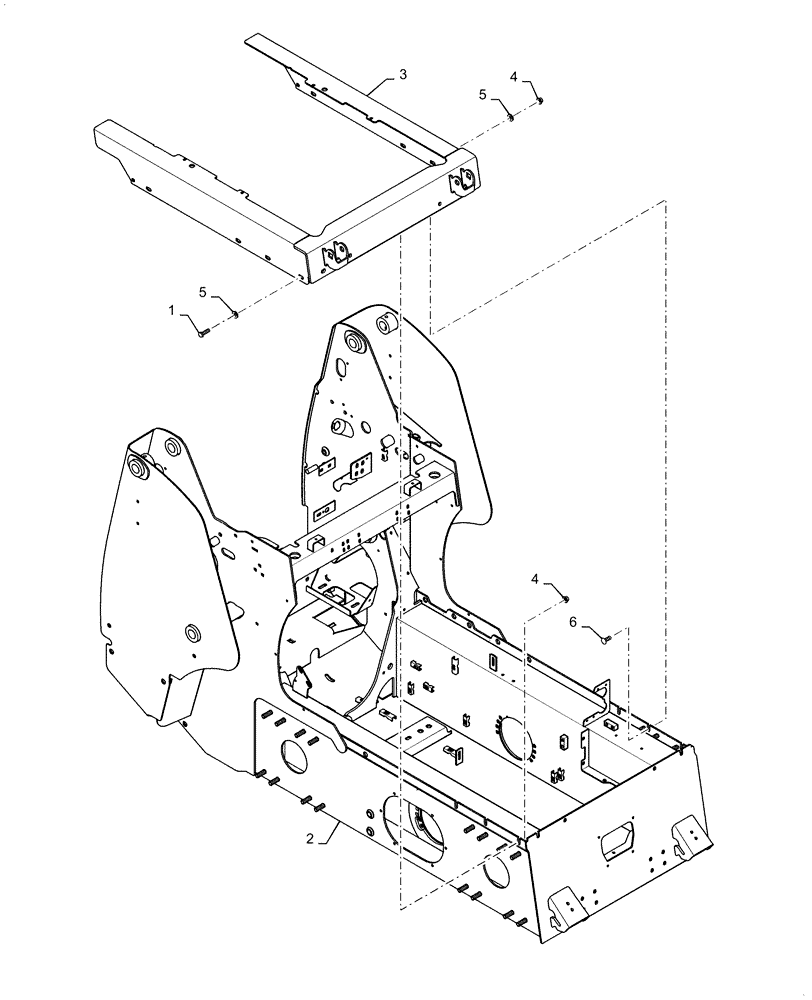

Запчасти Case SR175 (39.100.AB[01]) - CHASSIS (SR175) BEFORE FEB 6, 2012 (39) - FRAMES AND BALLASTING

1

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

11шт.

2

84200511

FRAME

Chassis

1шт.

3

84309634

DRAWBAR FRAME

Chassis, Upper

1шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

12шт.

6

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.
