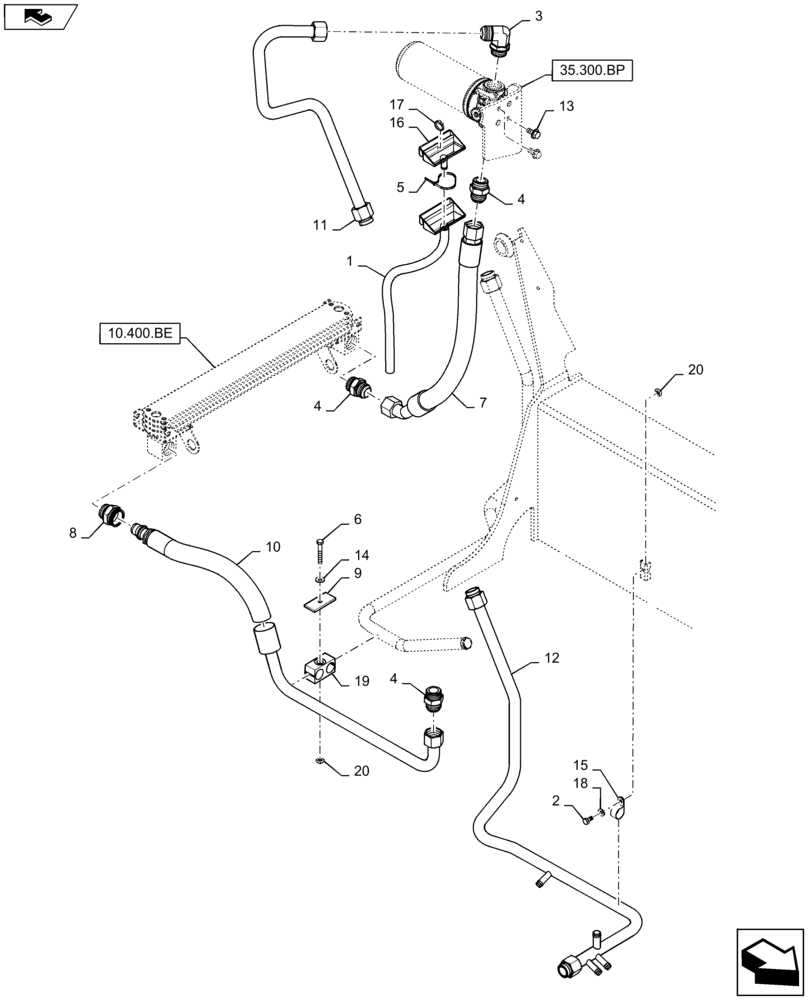

Запчасти Case SR160 (35.300.AD[02]) - RETURN PLUMBING (BEFORE BUILD DATE 22-JAN-2015) (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

3шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

7

47463835

HYDRAULIC HOSE,25mm ID x 660mm L x 1-5/16" - 12 x 1-5/16" - 12

Oil Cooler Outlet

1шт.

8

84259488

ADAPTER,1-5/16" - 12 ORB x -16 Female Quick Lok

-16MB X -16FQLL

1шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

1шт.

10

84319114

HYD TUBE

Loader Valve Outlet

1шт.

11

84380634

TUBE

Hydraulic Filter Return

1шт.

12

84536948

RIGID TUBE

Case Drain Manifold

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87455867

FUNNEL

Oil Filter

1шт.

17

87642915

CABLE TIE,198mm L

198mm

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.
