Запчасти Case SR160 (35.300.AD[02]) - RETURN PLUMBING (AFTER BUILD DATE 23-JAN-2015) (35) - HYDRAULIC SYSTEMS

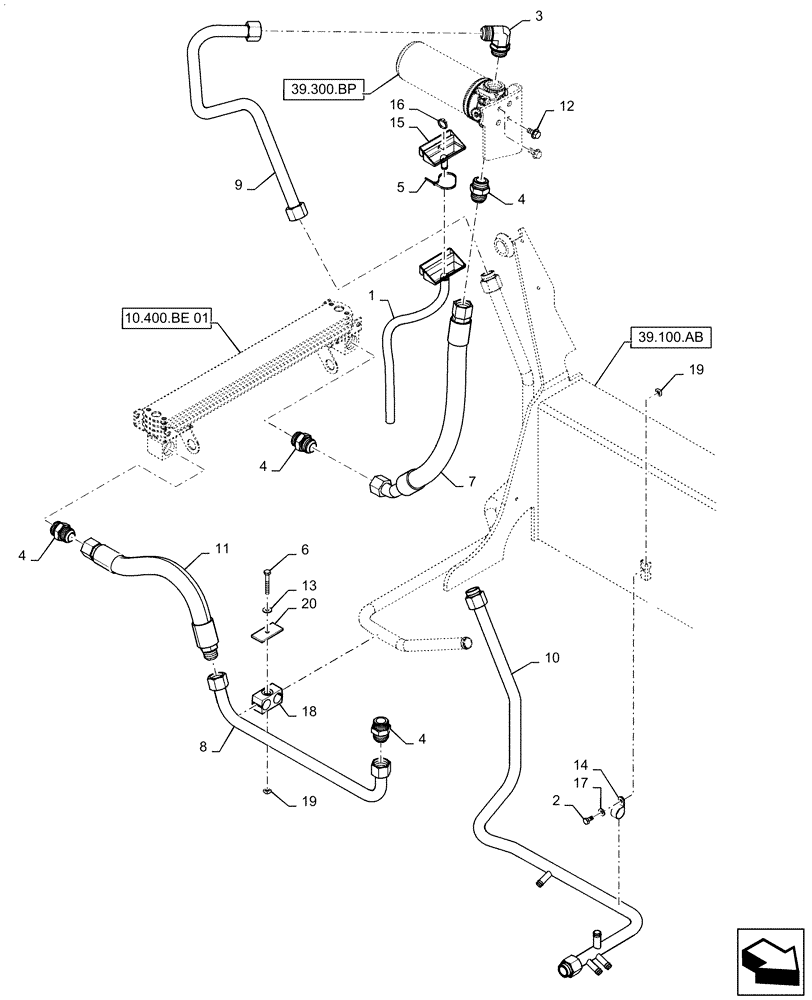

Схема запчастей Case SR160 - (35.300.AD[02]) - RETURN PLUMBING (AFTER BUILD DATE 23-JAN-2015) (35) - HYDRAULIC SYSTEMS
7
15
4
13
17
10.400.be 01
20
39.100.ab
2
18
4
8
4
11
14
3
1
19
12
9
6
39.300.bp
5
16
19
10
4

Артикул

Название

Примечание

Количество

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

4шт.

5

646223

STRAP,8.0" L

Cable Tie

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

7

47463835

HYDRAULIC HOSE,25mm ID x 660mm L x 1-5/16" - 12 x 1-5/16" - 12

Oil Cooler Outlet

1шт.

8

47539983

TUBE

Loader Valve Outlet

1шт.

9

47662395

HYD TUBE

Filter Return

1шт.

10

47684509

HYD TUBE

Case Drain Manifold

1шт.

11

47685163

HOSE,25mm ID X 520mm L x 1-5/16" - 12 x 1-5/16" - 12

Loader Valve Outlet

1шт.

12

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

14

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

15

87455867

FUNNEL

Oil Filter

1шт.

16

87642915

CABLE TIE,198mm L

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

18

225529A1

CLAMP,Dual, 25.4mm ID

Tube

1шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

1шт.

Выбрано товаров: 20
