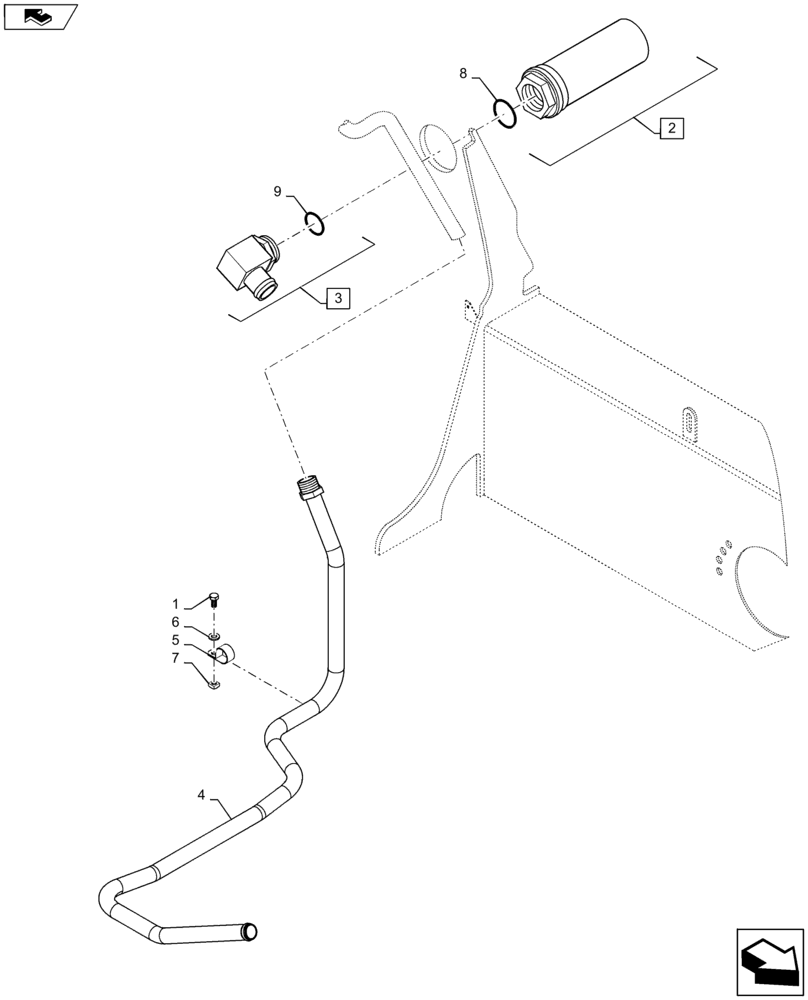

Запчасти Case SR160 (35.300.AD[01]) - SUPPLY PLUMBING (35) - HYDRAULIC SYSTEMS

1

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

2

84344918

FILTER STRAINER

Assy, Incl 8, Years: -27-MAR-14

1шт.

2

47624572

FILTER STRAINER

Assy, Incl 8, Start Year: 28-MAR-14

1шт.

3

84344944

90 ELBOW,-24, 1-7/8"- 12 ORB, - 24 Bead

-24MB X -24 Bead, Incl 9

1шт.

4

84512931

TUBE

Tandem Supply, Years: -27-MAR-14

1шт.

4

47662059

HYD TUBE

Tandem Supply, Start Year: 28-MAR-14

1шт.

5

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

8

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

Used With 84344918 Strainer, Years: -27-MAR-14

1шт.

8

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

Used With 47624572 Strainer, Start Year: 28-MAR-14

1шт.

9

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.
