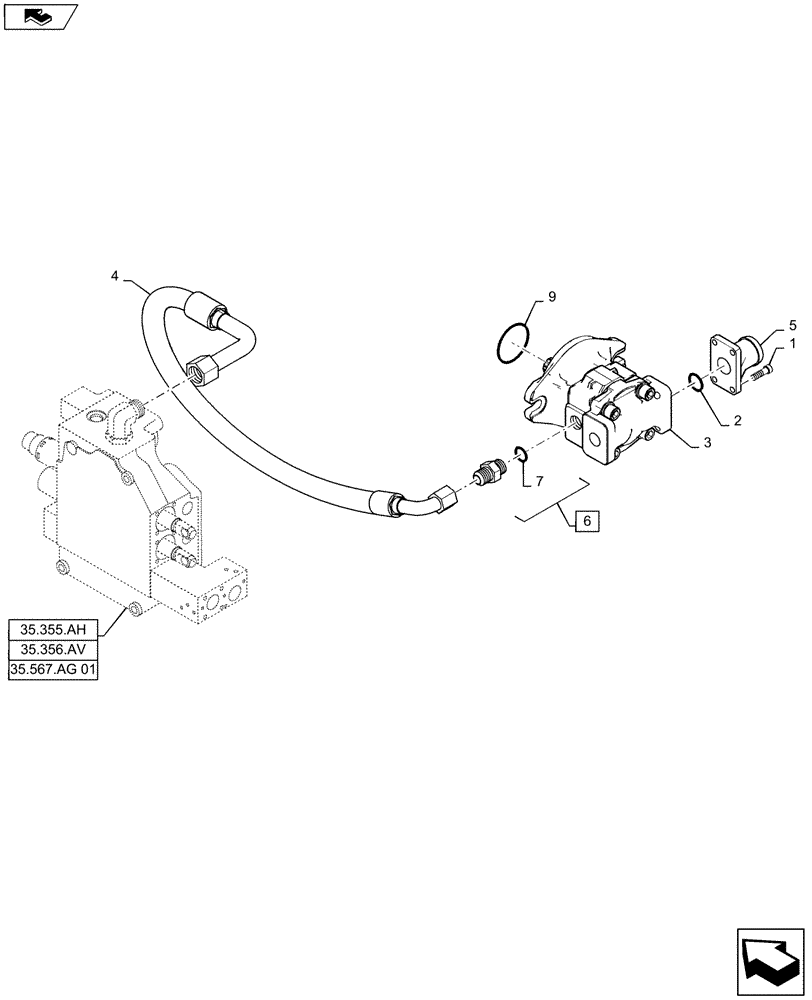

Запчасти Case SR160 (35.220.AA) - STANDARD GEAR PUMP (35) - HYDRAULIC SYSTEMS

1

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

84256517

PUMP,24.9 CC

Gear Pump, Incl 8

1шт.

4

84330502

HOSE,9.53mm ID x 830mm L, SAE 100R17

Loader Valve Supply

1шт.

5

84561027

FITTING

Gear Pump Suction

1шт.

6

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl 7

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

1шт.

8

84389261

SEAL KIT

Gear Pump, Not Illustrated

1шт.

9

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Mounting Oring

1шт.
