Запчасти Case SR160 (29.204.AB[02]) - HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

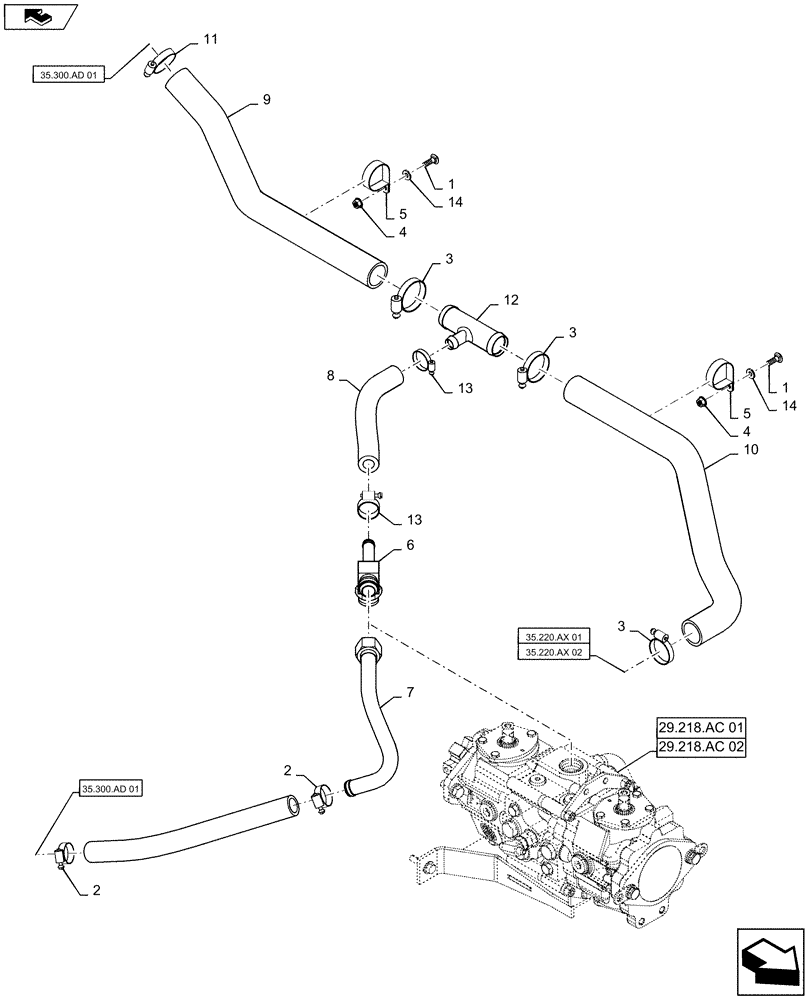

Схема запчастей Case SR160 - (29.204.AB[02]) - HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE
7
home
14
12
2
29.218.ac 02
2
3
4
4
35.300.ad 01
10
11
35.300.ad 01
13
13
1
6
3
35.220.ax 01
9
3
35.220.ax 02
5
8
5
14
29.218.ac 01
1

Артикул

Название

Примечание

Количество

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

2

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

6

84344939

TEE,37 Degree 1 5/16"-12 x 1 5/16"-12 ORB x -12 Bead Run

-16MB X -16MJ X -12Bead

1шт.

7

84344940

RIGID TUBE,25.4mm OD

Tandem Supply

1шт.

8

84344945

HOSE,19.05mm ID x 250mm L, SAE 100R4

Tandem Supply

1шт.

9

84349298

HOSE,38.1mm ID

Gear Pump Suction

1шт.

10

84349299

HOSE,38.1mm ID

Gear Pump suction

1шт.

11

84423189

FLEXIBLE HOSE,25mm ID x 425mm OAL

Charge Supply

1шт.

12

84511713

TEE,-24 Bead x -24 Bead x -12 Bead

-24Bead X -24Bead X -12Bead

1шт.

13

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

Выбрано товаров: 14
