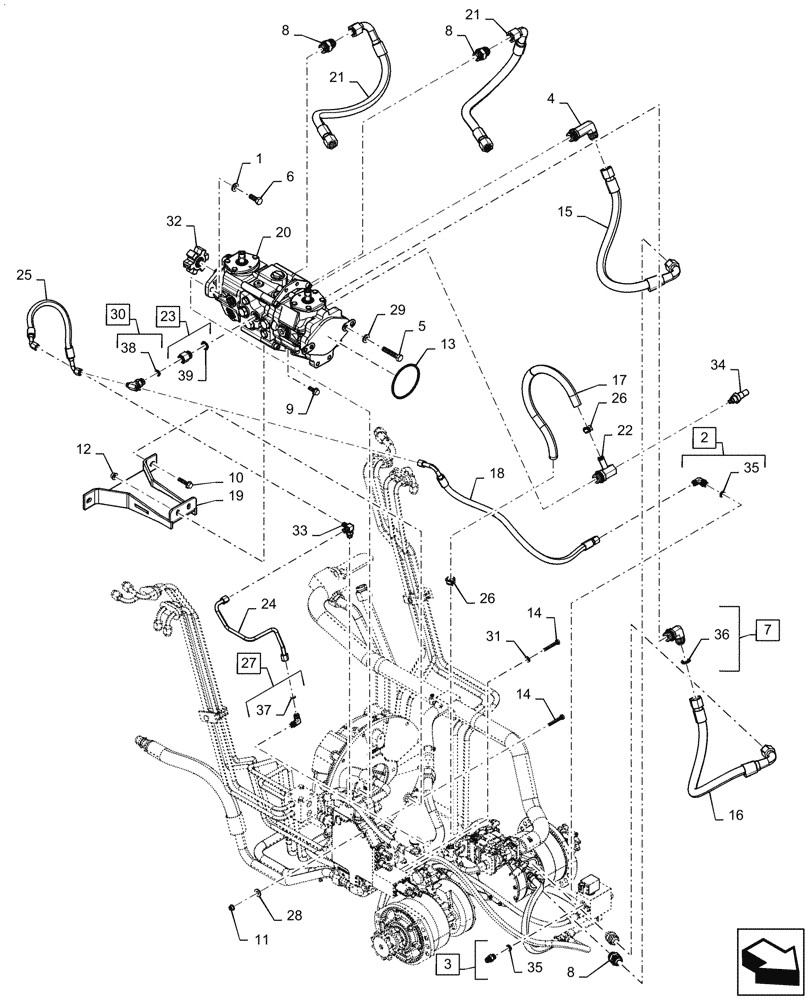

Запчасти Case SR160 (29.204.AB[01]) - HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS (29) - HYDROSTATIC DRIVE

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 35

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 35

1шт.

4

84569

ELBOW,90 Degree, 1-1/16" - 12, 37 Degree x 1-1/16" - 12, LG

1шт.

5

280615

BOLT,1/2"-13 x 2.8.13" OAL, Cl 5, Full Thd

2шт.

6

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

2шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 36

1шт.

8

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

6шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

15

47870908

HYDRAULIC HOSE,16mm ID x 634mm L, SAE 100R19

Hydraulic, Loop

1шт.

16

47870910

HYDRAULIC HOSE,16mm ID x 678mm L, SAE 100R19

Hydraulic, Loop

1шт.

17

47919061

HOSE,16mm ID x 535mm L

Hydraulic , Drain

1шт.

18

84201225

HOSE ASSY.,9.53mm ID x 745mm L, SAE 100R17

Charge to Brake Valve

1шт.

19

84254080

PLATE

Pump Support, Gray

1шт.

20

84256059

PUMP,35 CC

Hydraulic Tandem

1шт.

21

84258854

HYDRAULIC HOSE,15.88mm ID x 669mm L, SAE 100R19

Loop

2шт.

22

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

23

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

Incl 39

1шт.

24

84373389

RIGID TUBE,9.53mm OD

1шт.

25

84420320

HOSE ASSY.,9.53mm ID x 410mm L, SAE 100R17

1шт.

26

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

27

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 37

1шт.

28

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

29

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

30

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 38

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

32

87713745

CLUTCH,15T

1шт.

33

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

34

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic, M10 x 1.0

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
