Запчасти Case SR160 (29.200.AI[02]) - HANDLE MOUNTING, HAND CONTROLS (27-APR-2016 & NEWER) (29) - HYDROSTATIC DRIVE

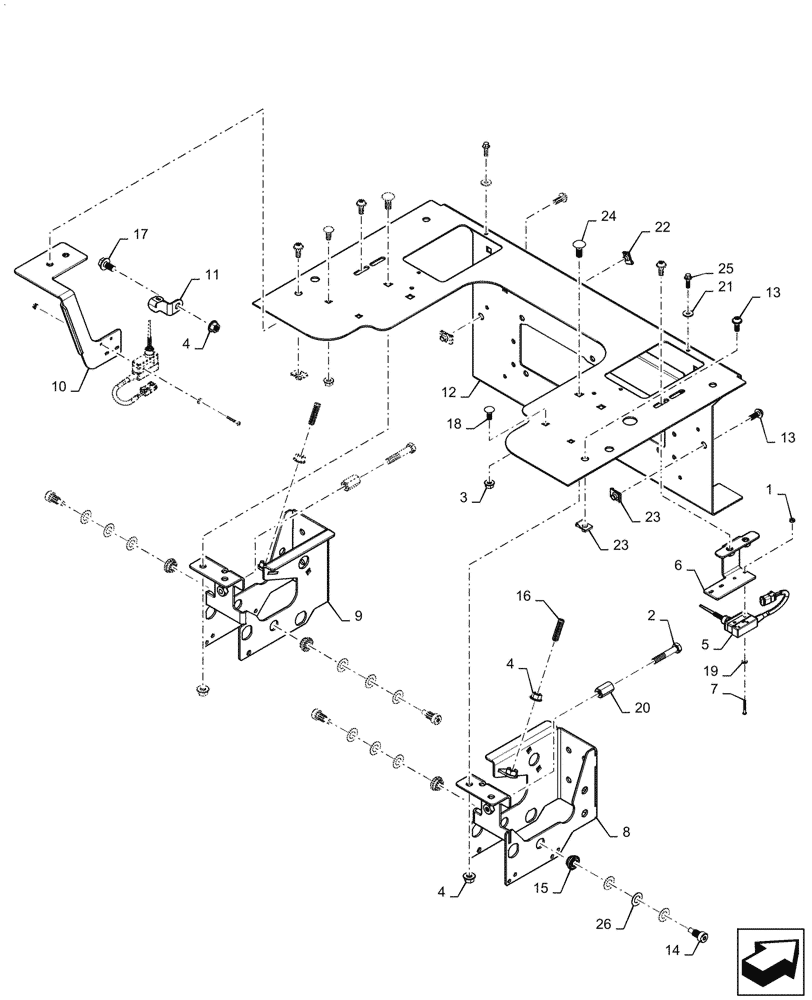

Схема запчастей Case SR160 - (29.200.AI[02]) - HANDLE MOUNTING, HAND CONTROLS (27-APR-2016 & NEWER) (29) - HYDROSTATIC DRIVE
5
15
26
1
20
3
21
24
11
4
17
13
23
23
12
8
13
2
4
9
25
10
6
4
22
18
19
7
14
16

Артикул

Название

Примечание

Количество

1

280859

NUT,Keps, #6-32

4шт.

2

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

13шт.

5

47553738

PROXIMITY SWITCH

Backup Alarm

12шт.

6

47553741

BRACKET

RH, Backup Alarm Switch Mounting, Years: -28-MAR-17

1шт.

6

48035952

RH, Backup Alarm Switch Mounting, Start Year: 29-MAR-17

BRACKET

1шт.

7

47570937

SCREW,Cross Pan HD, #6-32 x 1-1/8"

4шт.

8

47743199

MOUNT

RH Handle, Gray

1шт.

9

47743201

MOUNT

LH Handle, Gray

1шт.

10

47825111

BRACKET

LH, Backup Alarm Switch Mounting

1шт.

11

47826722

BRACKET

Brake Light Trigger

1шт.

12

47969227

PLATE

Heel, Gray

1шт.

13

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

10шт.

14

84291864

BOLT,M10 x 1.5 x 28mm

4шт.

15

84291865

BUSHING

Handle Pivot

4шт.

16

84345494

SET SCREW,Hex Socket, M10 x 1.5 x 40mm, Full Thd, Cl 45H

2шт.

17

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

18

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

20

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

2шт.

21

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

22

86625073

SPRING NUT,M6 x 1

6шт.

23

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

6шт.

24

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

10шт.

25

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

4шт.

26

87026182

WASHER,0.53" ID x 1" OD x 0.03" Thk

12шт.

Выбрано товаров: 27
