(10.501.ad) - EXHAUST GAS RECIRCULATION (EGR) BURNER ASSY.

Запчасти Case SR160 (10.501.ad) - EXHAUST GAS RECIRCULATION (EGR) BURNER ASSY. (10) - ENGINE

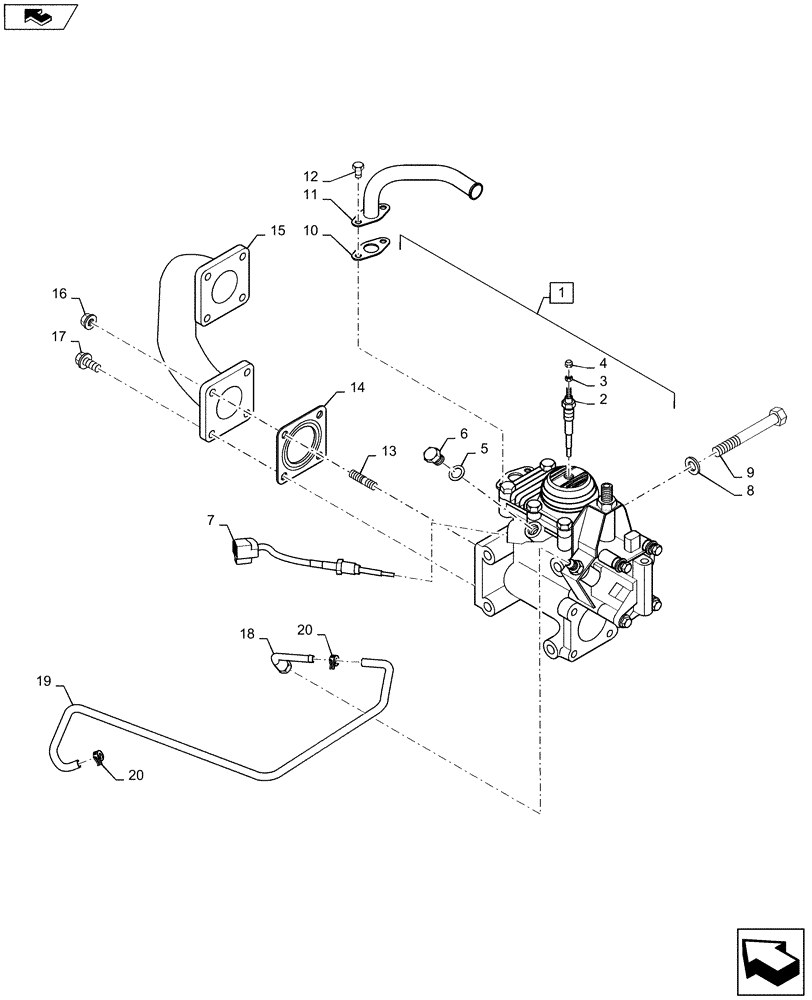

Схема запчастей Case SR160 - (10.501.ad) - EXHAUST GAS RECIRCULATION (EGR) BURNER ASSY. (10) - ENGINE
home
11
2
7
19
4
20
6
1
10
5
20
16
17
18
13
14
9
12
15
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA137406012

BURNER

Incl 2 - 6

1шт.

2

SBA185366261

GLOW PLUG

Incl In Ref. 1

1шт.

3

SBA023100004

NUT

Incl In Ref. 1

1шт.

4

SBA185736510

COVER

Incl In Ref. 1

1шт.

5

SBA140996410

GASKET

Incl In Ref. 1

1шт.

6

SBA010109679

PLUG

Incl In Ref. 1

1шт.

7

SBA185746120

SENSOR

1шт.

8

SBA027100010

WASHER

4шт.

9

SBA010311095

BOLT

4шт.

10

SBA137996040

GASKET

1шт.

11

SBA137656130

PIPE

1шт.

12

SBA010110610

BOLT

2шт.

13

SBA012110825

BOLT

2шт.

14

SBA135997210

GASKET

2шт.

15

SBA135656270

EXHAUST SYSTEM PIPE

1шт.

16

SBA023100008

NUT

2шт.

17

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

6шт.

18

SBA137646030

HEATER HOSE

1шт.

19

SBA068209673

HOSE

1шт.

20

SBA067200078

HOSE CLAMP

2шт.
