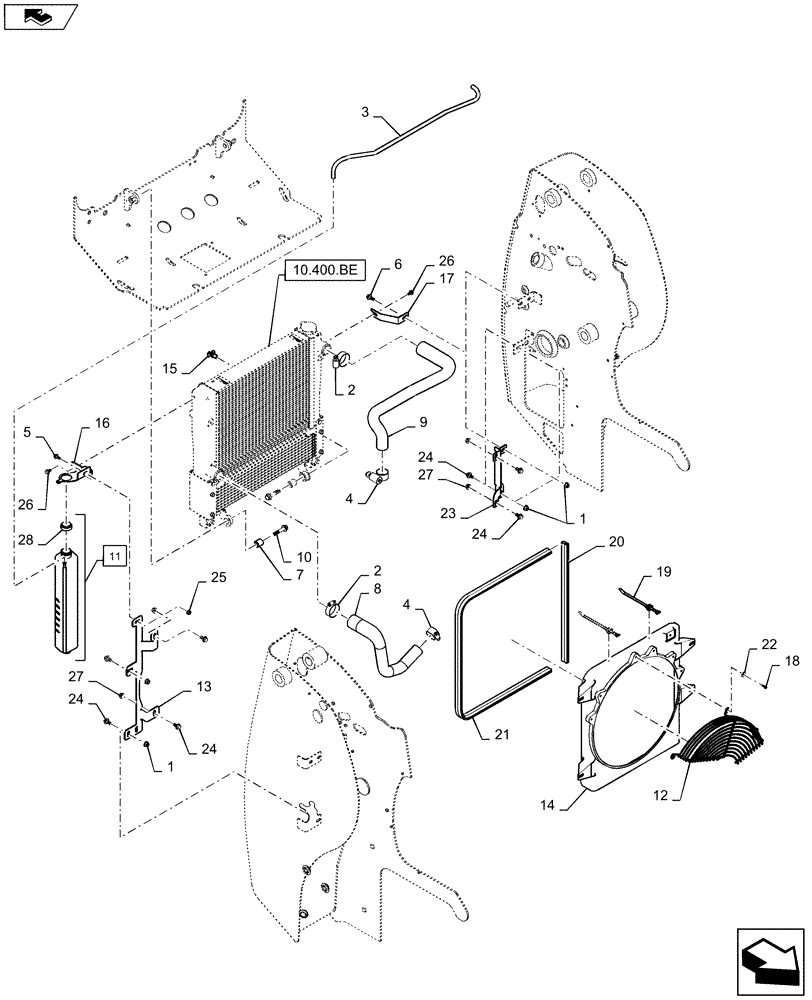

Запчасти Case SR160 (10.400.BF[02]) - FAN SHROUD AND ASSOCIATED PARTS (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

2.85ft

1шт.

4

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

7

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.

8

47367204

RADIATOR HOSE

Lower

1шт.

9

47367205

RADIATOR HOSE

Upper

1шт.

10

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

11

87020980

BOTTLE,2L

Recovery, Incl 28, 19.4" OAL, Years: -31-DEC-14

1шт.

11

47490003

BOTTLE

Recovery, Incl 28, 22.5" OAL, Start Year: 01-JAN-15

1шт.

12

47376067

GUARD

Fan

1шт.

13

47681404

BRACKET

Fan Shroud, RH

1шт.

14

47442898

SHROUD

450mm Fan

1шт.

15

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain Fuel

1шт.

16

47681407

BRACKET

Upper Coolant Bottle

1шт.

17

47516027

BRACKET

Radiator Mount

1шт.

18

84137412

SCREW,Hex Flng, M6 x 18mm

3шт.

19

84259663

CABLE TIE,228.6mm L, Nylon, Black

228mm

2шт.

20

84277010

RUBBER SEAL,576.1mm L

Bulb, 576.1mm

1шт.

21

84277011

RUBBER SEAL,1721mm L

Bulb, 1721mm

1шт.

22

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

23

84552138

BRACKET

Fan Shroud, LH

1шт.

24

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

25

86505866

FLANGE BOLT,Hex, M6 x 20mm, Cl 8.8

1шт.

26

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

27

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

28

257884A1

CAP

Coolant Bottle, Incl In Ref 11

1шт.

29

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.
